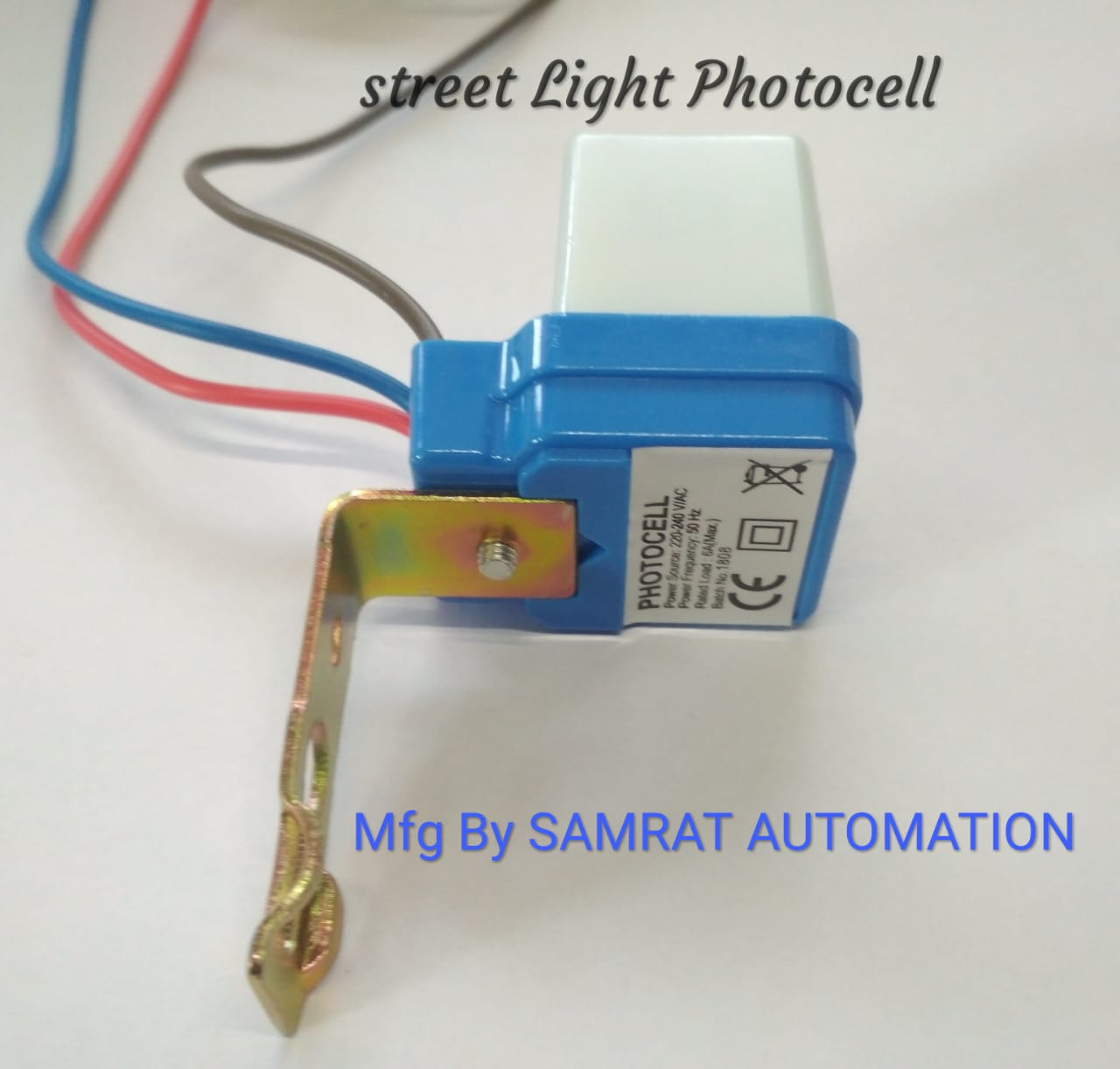

Model No:SA31P1
This Product is a Energy saving Device,it cant turn on or off light by automatically to ambient-light. It can control the load working only at night.You can use this sensor in road lights, street lights, garden lights, passage, front gate or main door lights, pole light, Incandescent lamp, led lights and all other kinds of lamps up to 10 amp etc.
Applications
Street Light, LED Lights, Garden Lights, Balcony Lights, Incandescent lamp.
 Operating volt |
AC 220-250V 50Hz-60Hz |
| Load power |
Upto 300/1200W Max |
| Ambient Light |
3-2000(Adjustable) |
| Load type |
Incandescent lamp, LED Light, CLF, Fans etc. |
| Detecting distance |
0~7M |
| Detecting Angle |
360 degree. |
| Installation Height |
2.2~4 Mtr |
| Motion detection speed |
0.6~1m/s |
| Power consumption |
0.1W (static) & 0.4(work) |
| Working Humidity |
Less Than 93%RH |
| Delay |
10 Seconds - 7 Minutes (Adjustable) |
| Operating volt |
AC 220-250V 50Hz-60Hz |
| Load power |
Upto 1200W Max |
| Ambient Light |
3-2000Lux(Adjustable) |
| Load type |
Incandescent lamp, LED Light, CLF, Fans etc. |
| reach |
1-8m(radii.),adjustable |

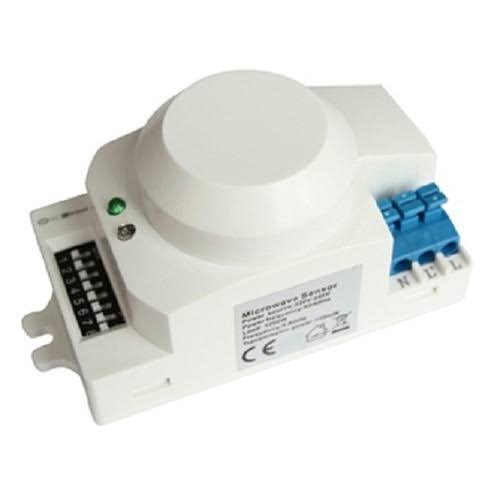

| HF System |
5.8GHz CW radar,ISM Band |
| Detecting distance |
0~8M |
| Transmission Power |
<10mW |
| Detecting Angle |
360 degree. |
| Installation Height |
2.2~4 Mtr |
| Motion detection speed |
0.6~1m/s |
| Power consumption |
0.1W (static) & 0.4(work) |
| Working Humidity |
Less Than 93%RH |
| Delay |
8 Seconds - 12 Minutes (Adjustable) |

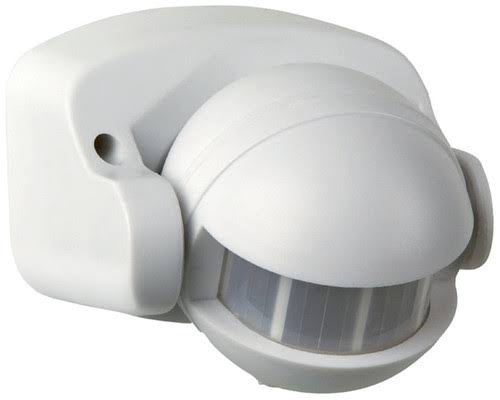

| Operating volt |
AC 220-250V 50Hz-60Hz |
| Load power |
Upto 300/1200W Max |
| Ambient Light |
3-2000(Adjustable) |
| Load type |
Incandescent lamp, LED Light, CLF, Fans etc. |
| Detecting distance |
10~12 Mtrs(Dept temp) |
| Detecting Angle |
180 degree. |
| Installation Height |
2.2~4 Mtr |
| Motion detection speed |
0.6~1m/s |
| Power consumption |
0.1W (static) & 0.4(work) |
| Working Humidity |
Less Than 93%RH |
| Delay |
10 Seconds - 7 Minutes (Adjustable) |

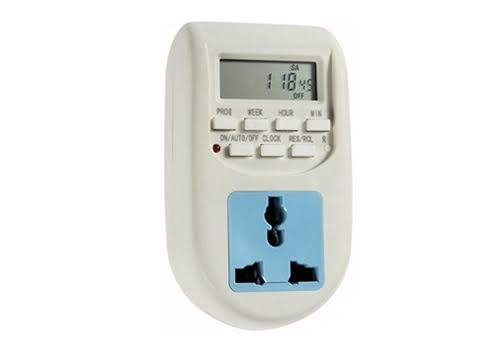

Model No:SA41P
Timer it is realtime timer programmable switch with 16 on/off. prog's varios electricalappliances at pre-specified times.Widely used for intelligent control of lighting equipment , street lamps, garden lights decorative lighting, hoarding lighting, glow sign boards and outdoor lighting, Neon signs, Household electrical appliances etc. As per time of the day.
Use
Street Lamps, Garden lights decorative lighting, glow sign boards, laptop, mobile charger and other domatic appliance.
Features
Energy-saving electronic timer programming.
24 X 7 programmable.
Repeat programs with 16 on/off settings, and setting on/off manually.
Working light power indicator clearly.
Color:white
Item size: 107 * 65 * 35mm
Net weight: 126g
Specification:
Min setting time: 1 min 1000 Watt/ 10 Amps 240 V AC
Operating Temperature: -10 to + 40 Deg C
Accourancy: +/- Min per month 24 hours / days a week programmable Built-in battery for backup when power failure Repeat programs with 16 on/off settings, and setting on/off manually
Battery Backup: Ni- Mh 1.2V 80mAH
Current Cunsumption: 0.015MA
Scocket Type: Indian Standard
| Operating volt |
AC 220-250V 50Hz-60Hz |
| Load power |
Upto 1200W Max |
| Ambient Light |
3-2000Lux(Adjustable) |
| Load type |
Incandescent lamp, LED Light, CLF, Fans etc. |
| reach |
1-8m(radii.),adjustable |
| HF System |
5.8GHz CW radar,ISM Band |
| Detecting distance |
0~8M |
| Transmission Power |
<10mW |
| Detecting Angle |
360 degree. |
| Installation Height |
2.2~4 Mtr |
| Motion detection speed |
0.6~1m/s |
| Power consumption |
0.1W (static) & 0.4(work) |
| Working Humidity |
Less Than 93%RH |
| Delay |
8 Seconds - 12 Minutes (Adjustable) |
