INFRA RED SENSORS

Infra Red Sensors

Electronic Switches offers Anti Crane Collision Switch for two over head cranes on the same rail.These units are installed on two cranes on the same rail approaching each other.With these units, the two cranes on the same rail will never collide with each other and thus the damage caused due to collision can be avoided.The minimum distance in between two cranes can be set and will always be maintained.The cranes will be able to move away from each other but not closer.

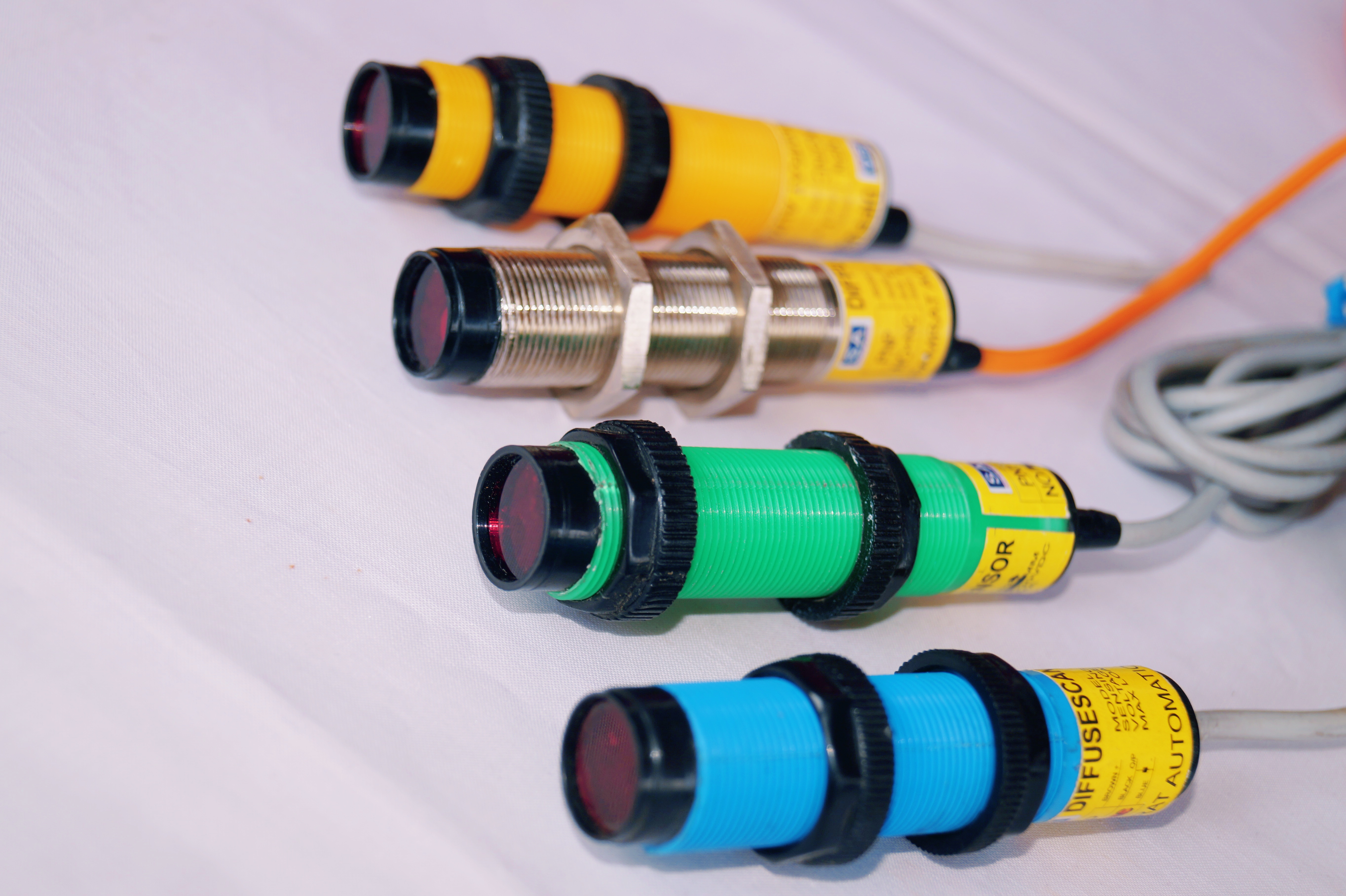

M 18 DIFFUSESCAN ALL

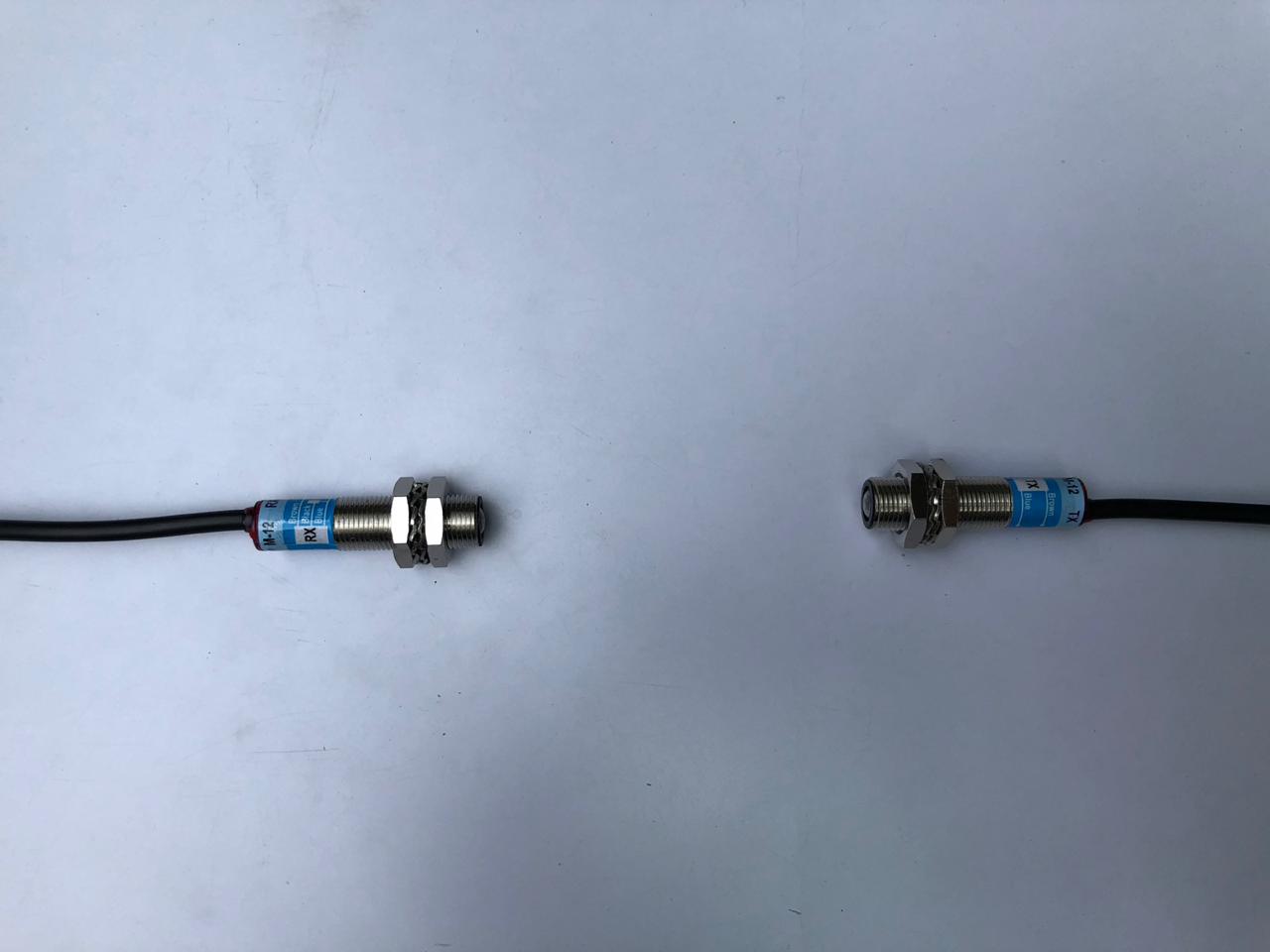

M12 THROUGH BEAM SENSOR

M12 Through Beam

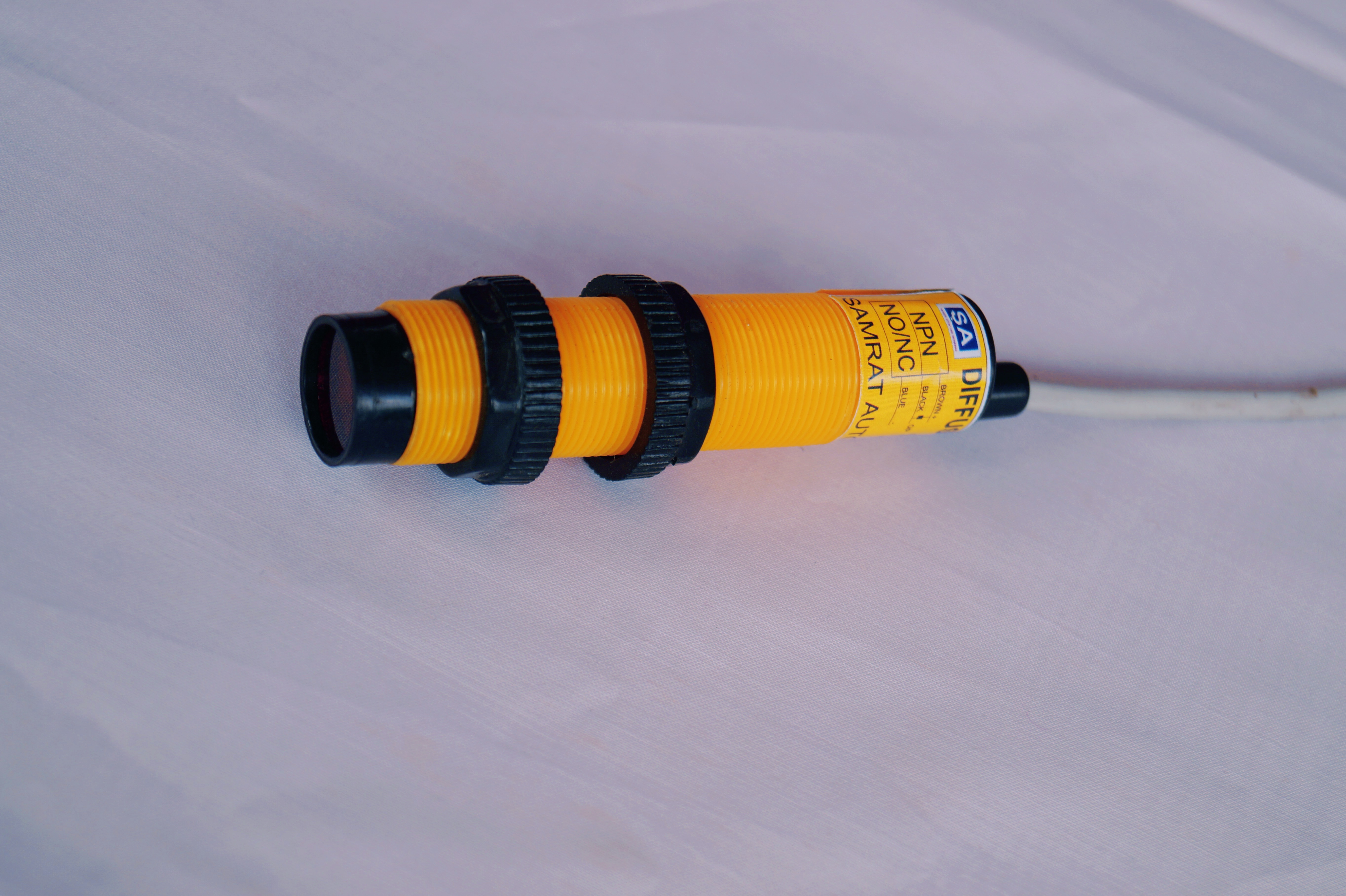

M18 DIFFUSESCAN PVC BODY

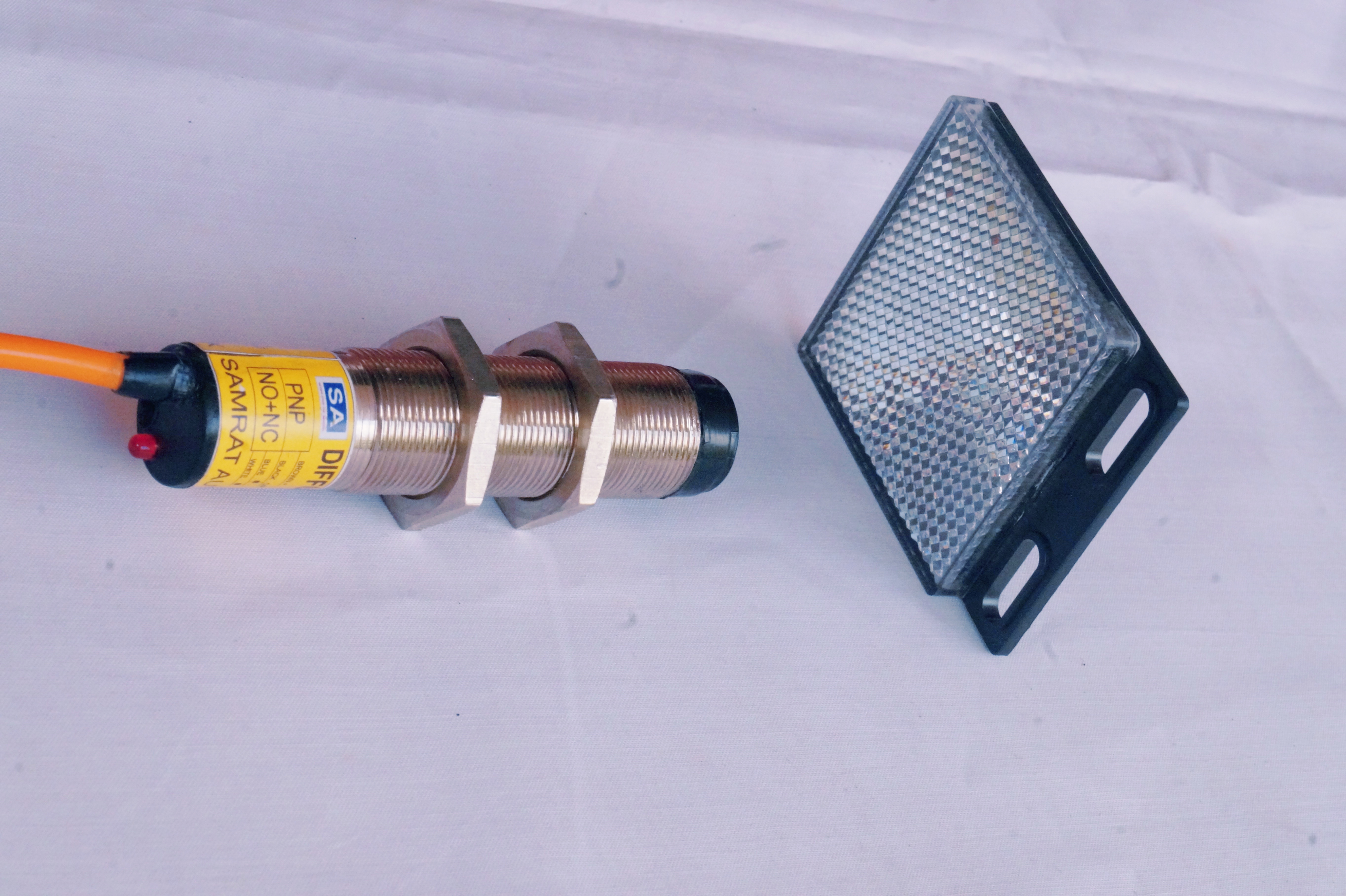

M18 RETROREFLCTIVE

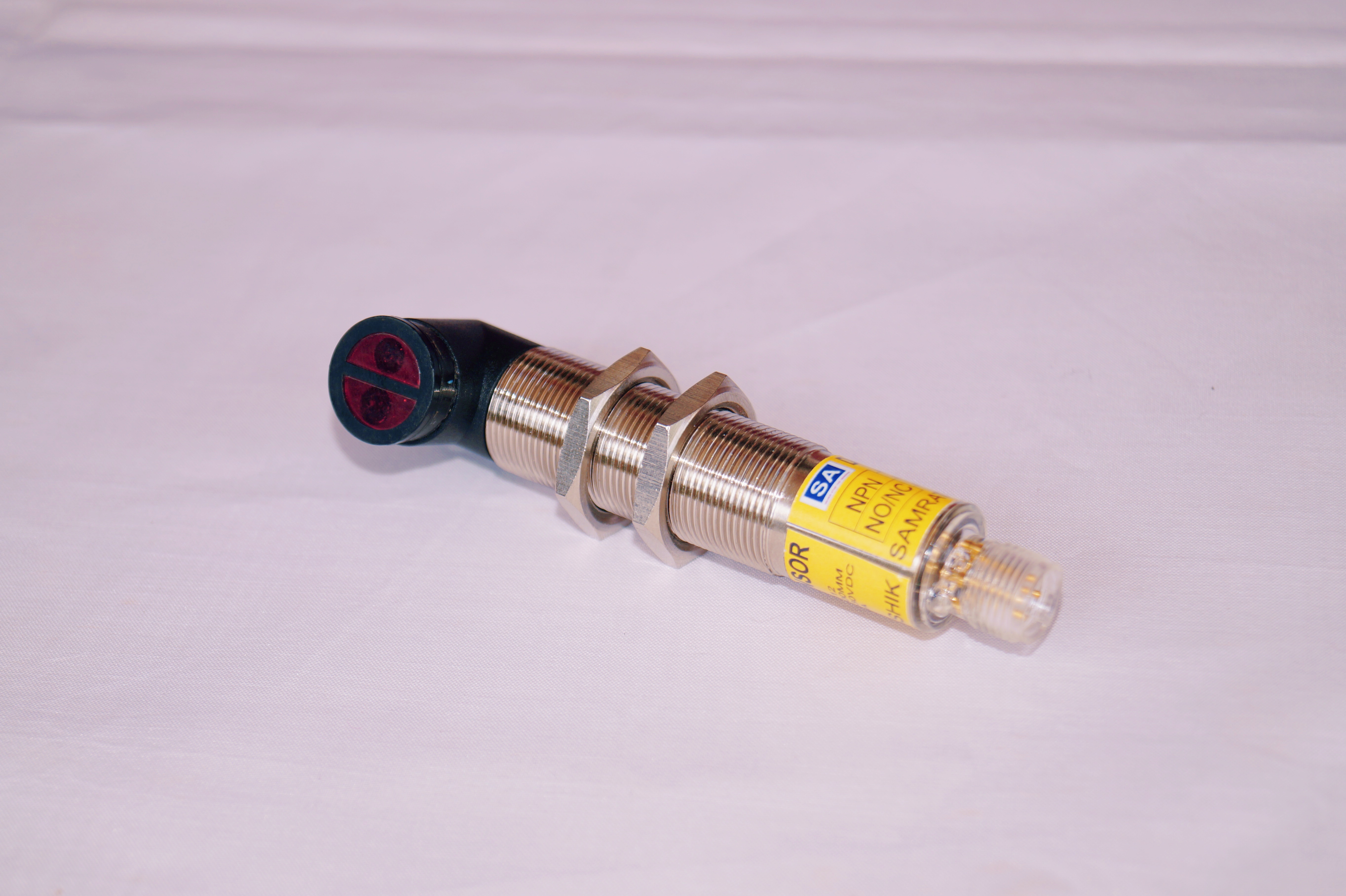

M18 RIGHT ANGEL DIFFUSESCAN

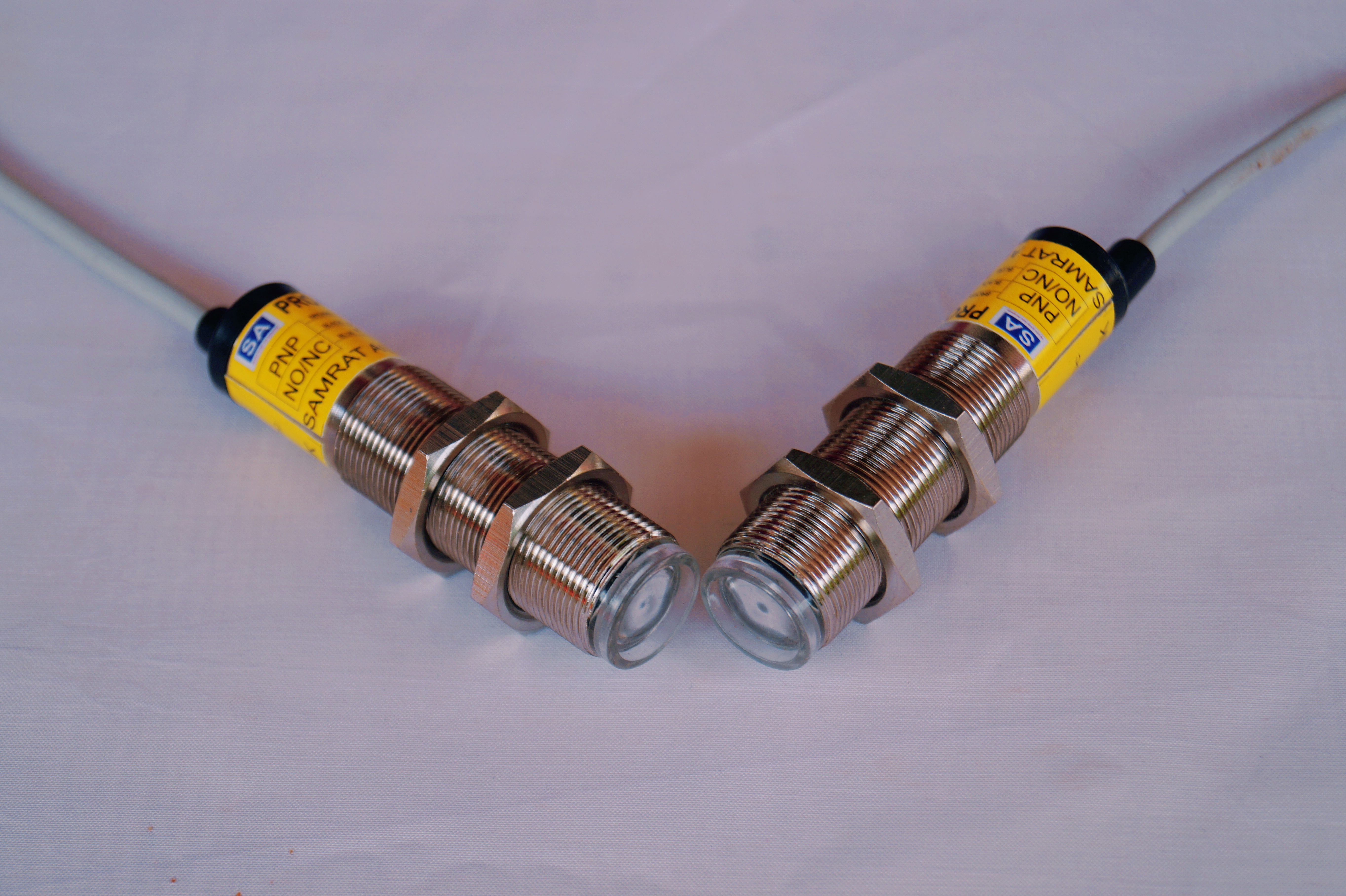

M18 Through Beam Sensor

M18 THROUGH SCAN

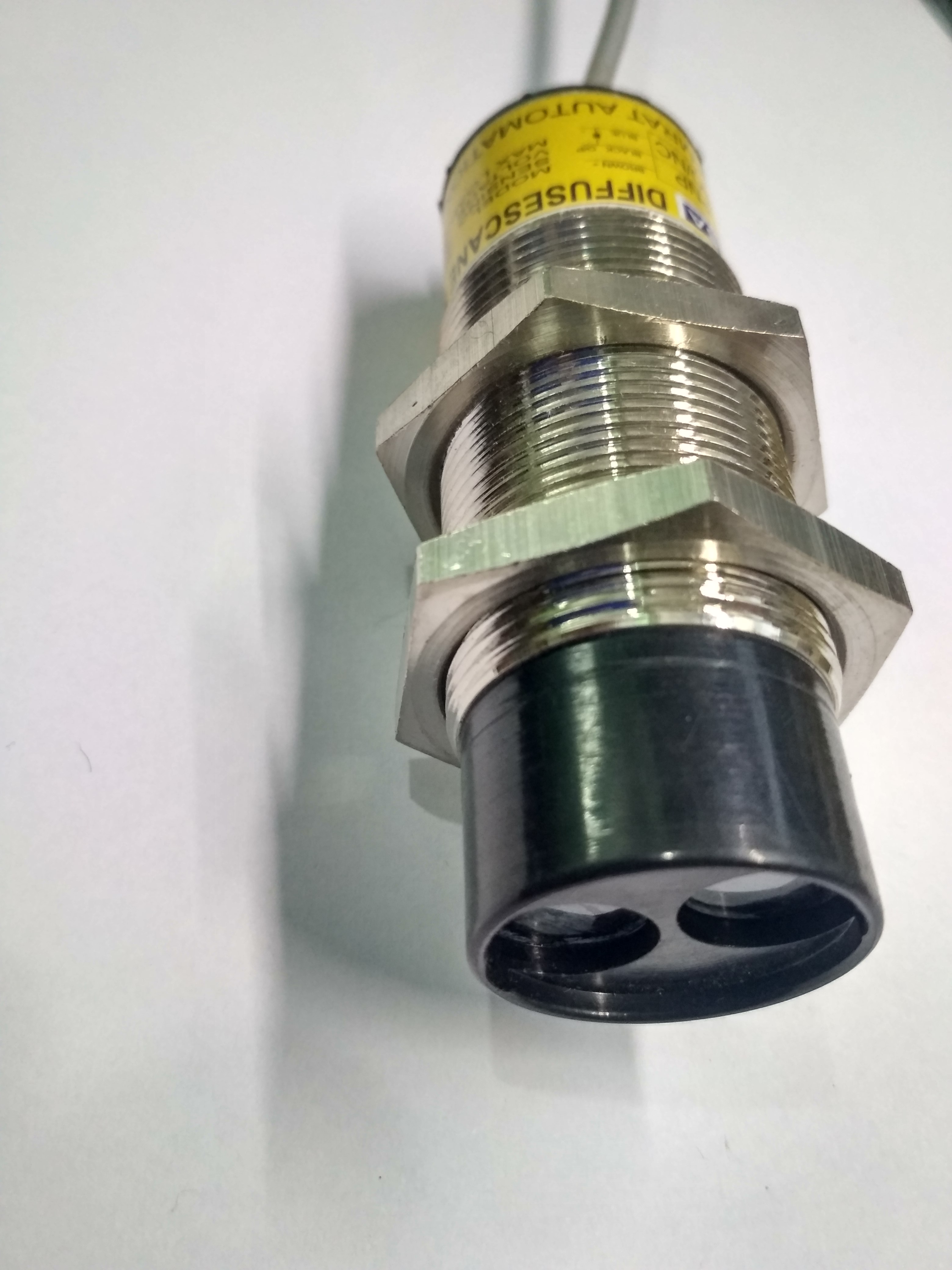

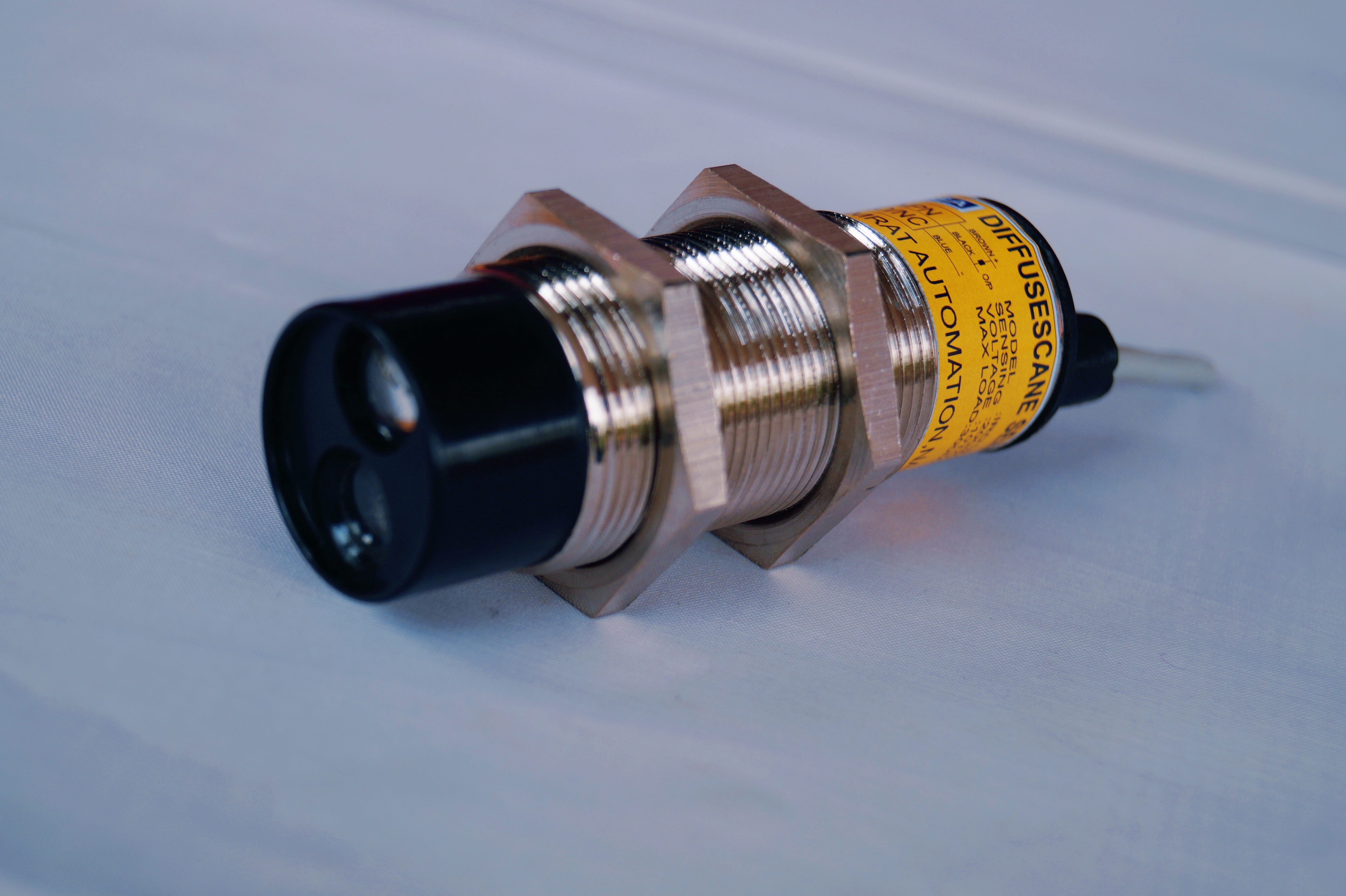

M30 DIFFUSESCAN

M30 DIFFUSESCAN

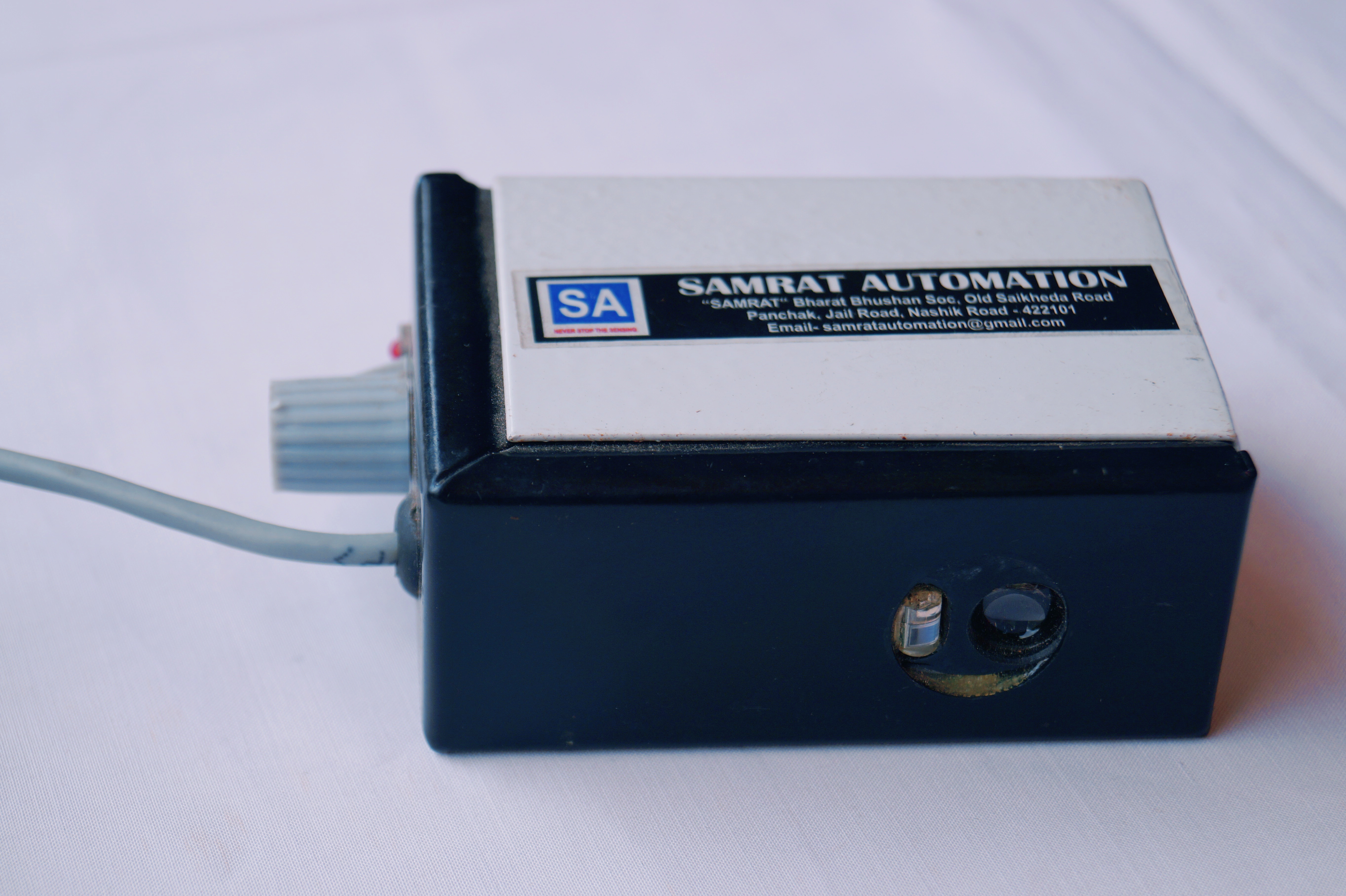

PRINT MARK SENSOR

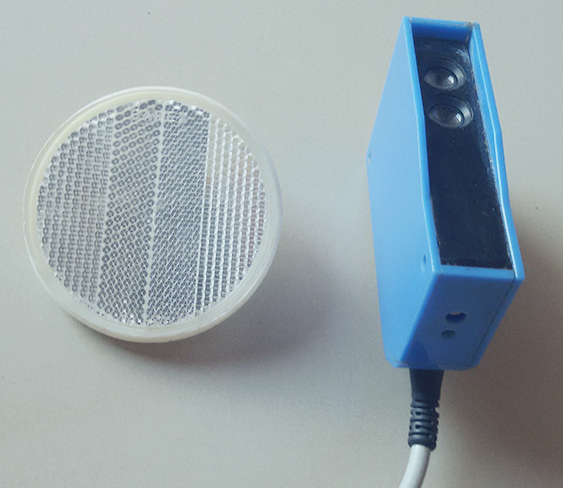

RETRO REFLECTIVE RECTANGULAR

Technical Specifications

Diffuse Sensor	Diffuse Sensor	Diffuse Sensor
3 Wire Sensor	4 Wire Sensor	Two Wire Sensor
Range : 100mm / 300mm / 500mm	Range : 100mm / 300mm	Range : 100mm
Dimensions : 18D X 60 / 75 L mm	Dimensions : 18D X 60 L mm	Dimensions : 18D X 75 L mm
Output : PNP or NPN	Output : PNP and NPN	Output : NO or NC
Output Current : 200 mA	Output Type : NO / NC slectable	supply : 110 / 230 V AC
Protection : Short ckt / Reverse Polarity	Output Current : 200 ma	Output Current : 200 ma
With Sensitivity Adjustment	Protection : Short Circuit / Reverse Plarity	Housing : ABS Plastics
Supply : 10 -30 V DC	With Sensitivity Adjustment
Connector Models available	Supply : 10 - 30 V DC

Technical Specifications

Retro Reflactive Sensor	Retro Reflactive Sensor	Retro Reflactive Sensor
Dimensions : 18 X 75 mm - Cylindrical	Dimensions : 55 X 50 X 17 mm	Dimensions : 55 X 50 X 20 mm
Range : 300mm / 3mtr.	Range : 1 meter	Range : 3 meter
Housing : Plated Brass	Housing : ABS Plastic	Housing : ABS Plastic
Output : PNP or NPN	Output : PNP or NPN - 3 wire	Output : PNP or NPN - 4 wire
Output Type : NO or NC Selectable	Output Type : NO or NC Selectable	Output Type : NO or NC Selectable
With Sensitivity Adjustment	With Sensitivity Adjustment	With Sensitivity Adjustment
Supply : 10 - 30 VDC	Supply : 10 - 30 VDC	Supply : 10 - 30 VDC
Output Current : 200 mA	Output Current : 200 mA	Output Current : 200 mA
Protection : Short Circuit / Reverse Polarity	Protection : Short Circuit / Reverse Polarity	Protection : Short Circuit / Reverse Polarity

Technical Specifications

Diffuse Sensor	Diffuse Visible Light	Diffuse Sensor
Range : 10mm / 10mm / 100mm resp.	Range : 100mm / 300mm	Range : 200mm
Dimensions : 18 X 75 mm - Amplifier	Dimensions : 18D X 60 L mm	Dimensions : 40 X 28 X 13 mm
With Sensitivity Adjustment	Output : PNP or NPN and NO or NC	Output : PNP or NPN : NO or NC
Supply : 10 - 30 V DC	Housing : Plated Brass	Housing : ABS Plastic
Output Current : 200 ma	With Visible beam for targeting object	With Sensitivity Adjustment
Protection : Short Circuit / Reverse Polarity	With Sensitivity Adjustment	Supply : 10 - 30 V DC
Extended Sensor Dia :06 / 08 / 12mm	Output Current : 200mA	Protection : Short Circuit Protection
Extended Sensor Length : 25 mm	Protection : Short Circuit / Reverse Polarity	Protection : Reverse Polarity protection.

Technical Specifications

Slot Sensor	Slot Sensor	Slot Sensor	Slot Sensor
Slot Width / Depth : 3mm / 45 mm.	Slot Width / Depth : 5mm / 10 mm.	Slot Width / Depth : 20mm / 45 mm.	Slot Width / Depth : 50mm / 45 mm.
Dimensions : 70 X 50 X 15mm	Dimensions : 60 X 20 X 15mm	Dimensions : 70 X 50 X 15mm	Dimensions : 70 X 80 X 15mm
Output : PNP or NPN	Output : PNP or NPN	Output : PNP / NPN	Output : PNP / NPN
Output Type : NO or NC Selectable	Output Type : NO or NC	Output Type : NO / NC Selectable	Output Type : NO / NC Selectable
Housing : ABS Plastic	Housing : ABS Plastic	Housing : ABS Plastic	Housing : ABS Plastic
With Sensitivity Adjustment		With Sensitivity Adjustment	With Sensitivity Adjustment
Supply : 10 - 30 VDC	Supply : 10 - 30 VDC	Supply : 10 - 30 VDC	Supply : 10 - 30 VDC
Output Current : 200 mA	Output Current : 200 mA	Output Current : 200 mA	Output Current : 200 mA
Protection : Short Circuit / Reverse Polarity	Protection : Reverse Polarity Protection	Protection : Short Circuit / Reverse Polarity	Protection : Short Circuit / Reverse Polarity

Technical Specifications

Through Beam Sensor	Through Beam Sensor	Through Beam Sensor	Through Beam Sensor
Slot Width / Depth : 100mm / 45 mm.	Range : 3 meters	Range : 3 mtr /10 mtr. / 20 mtr.	Range : 500mm / 500mm / 1000mm.
Dimensions : 70 X 130 X 15mm	Dimensions : 12D X 80 L mm cylindrical	Dimensions : 18D X 75 L mm cylindrical	Amplifier Dimensions : 18 X 75 mm
Output:PNP / NPN : NO or NC Selectable	Housing : Plated Brass	Housing : Plated Brass	Output : PNP or NPN
Housing : ABS Plastic	Output : PNP or NPN	Output : PNP or NPN	With Sensitivity Adjustment
With Sensitivity Adjustment	Output Type : NO or NC	Output Type : NO or NC Selectable<	Supply : 10 - 30 VDC
Supply : 10 - 30 VDC	Supply : 10 - 30 VDC	Supply : 10 - 30 VDC	Protection : Short Circuit / Reverse Polarity
Output Current : 200 mA	Output Current : 200 mA	Output Current : 200 mA	Sensor Housing : Plated Brass
Protection : Short Circuit Protection	Protection : Short Circuit Protection	Protection : Short Circuit Protection	Extended Sensor Dia : 06 / 08 /12mm
Protection : Reverse Polarity	Protection : Reverse Polarity	Protection : Reverse Polarity	Extended Sensor Length : 25mm
