Products

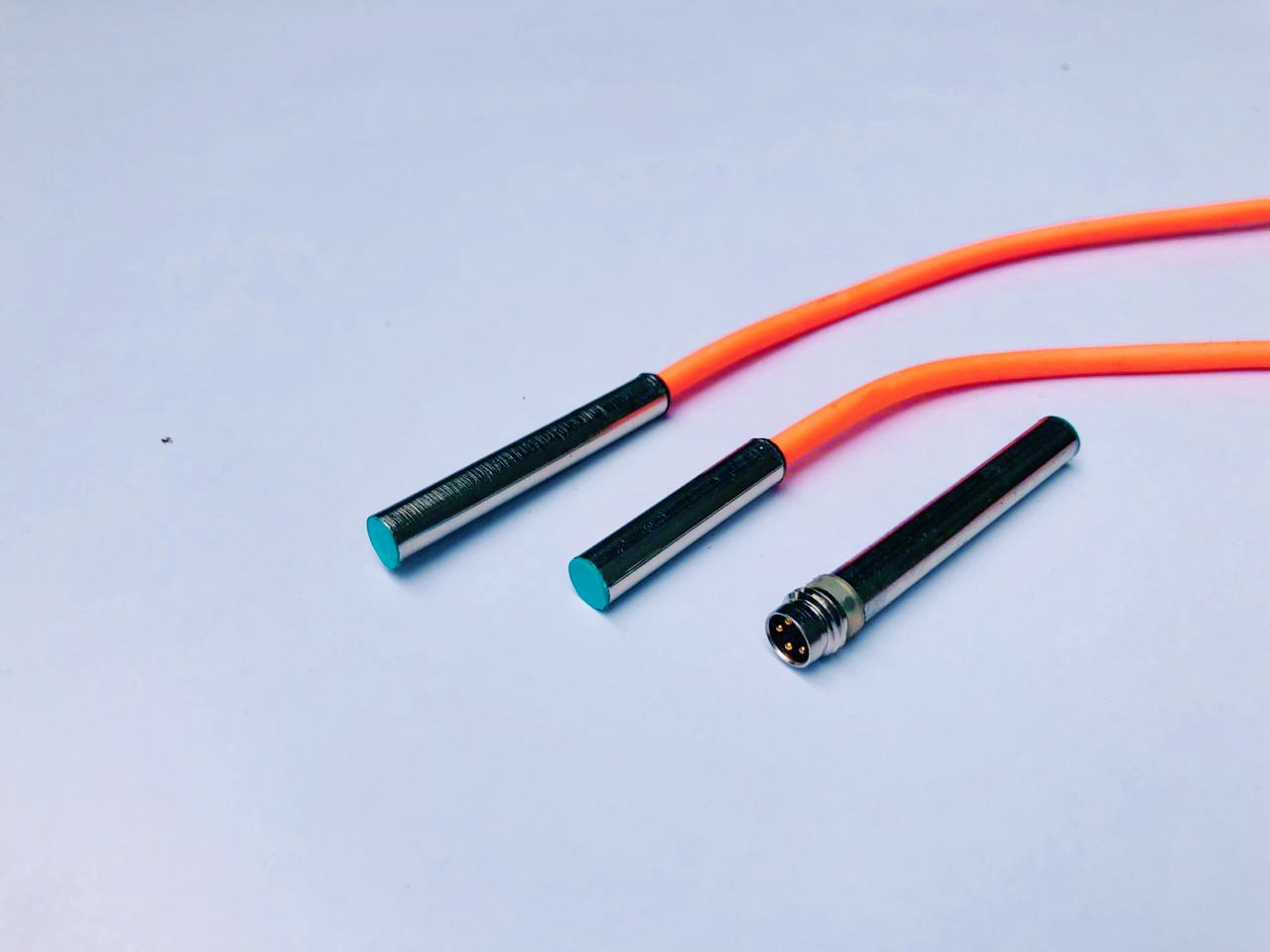

M-5 Input Voltage (3 Wire)

Order Code	Range (mm)	Logic	O/P	Mounting
	1 mm	PNP	NO	FLUSH
		PNP	NC
		NPN	NO
		NPN	NC

Common Features :

Voltage 5-40 V DC
Max Load Current <300mA
Voltage Drop <2V DC
Leakage Current <8mA@12 V DC
Switching Freq 1000Hz
LED Indication, Reverse Polarity
Protected,, Switching Impulse
Suppression, PVC Cable,

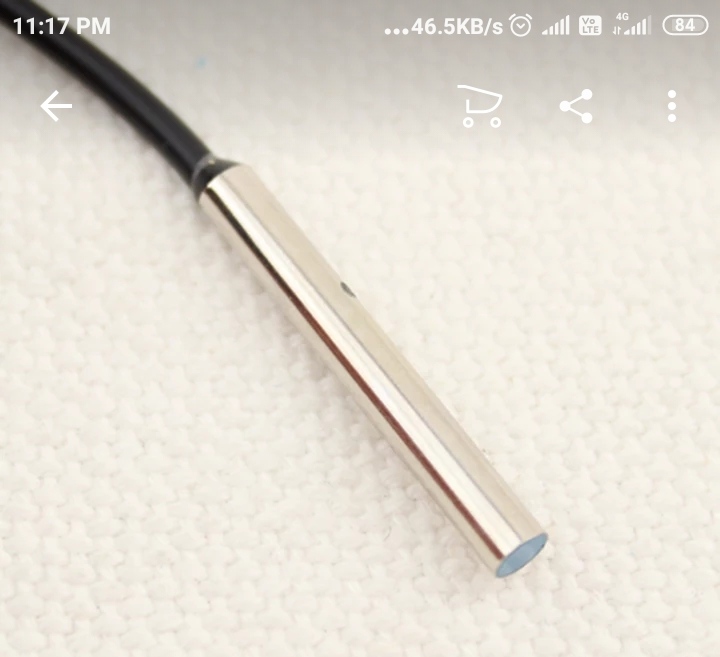

M-6.5 Input Voltage (3 Wire)

Order Code	Range (mm)	Logic	O/P	Mounting
	1.5 mm	PNP	NO	FLUSH
		PNP	NC
		NPN	NO
		NPN	NC

Common Features :

Voltage 5-40 V DC
Max Load Current <300mA
Voltage Drop <2V DC
Leakage Current <8mA@12 V DC
Switching Freq 1000Hz
LED Indication, Reverse Polarity Protected, Over Load Protected Short Circuit Proof, Switching Impulse Suppression, PVC Cable,

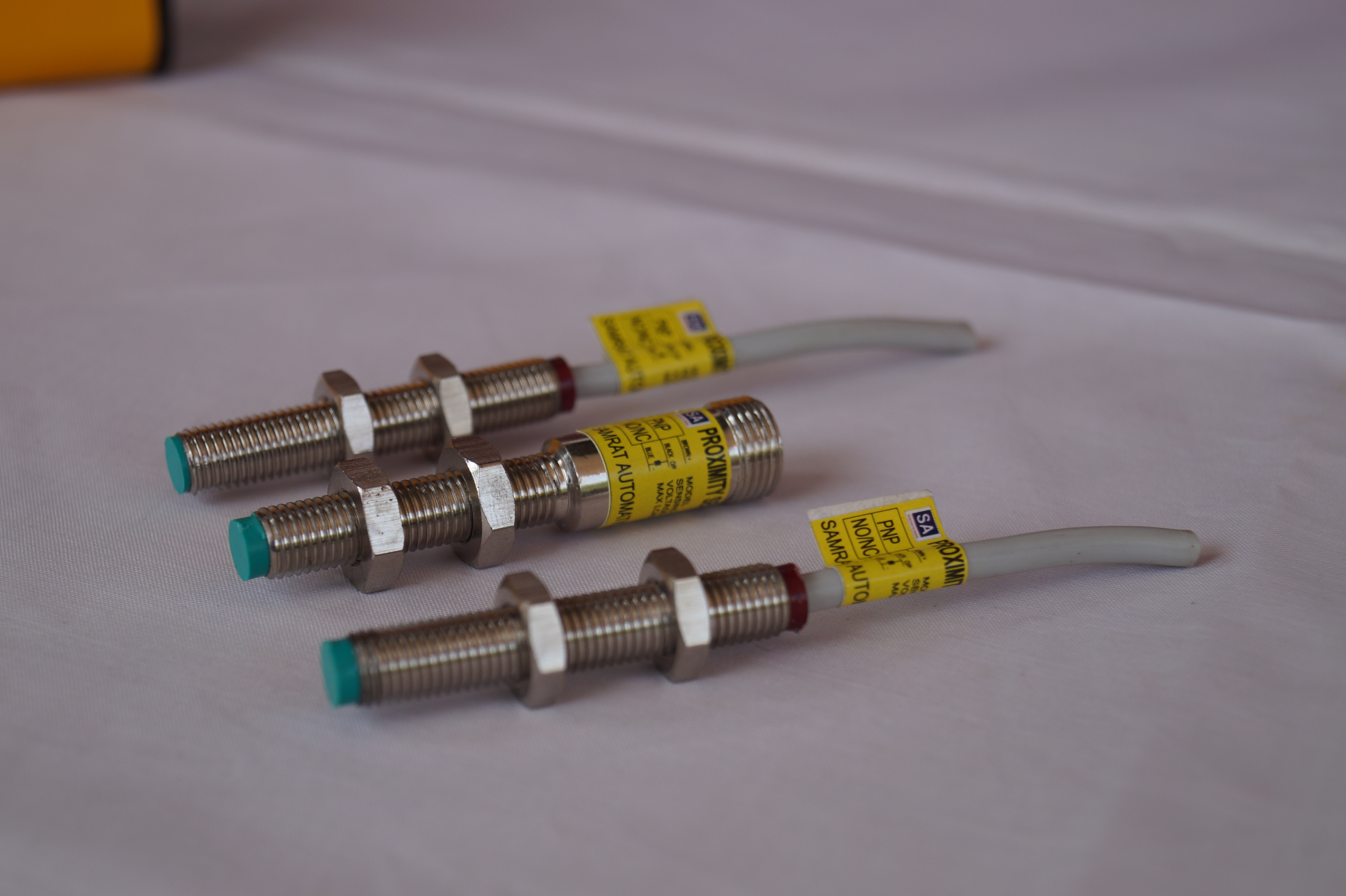

M-8 Input Voltage (3 Wire)

M8

Order Code	Range (mm)	Logic	O/P	Mounting
	1.5 mm	PNP	NO	FLUSH
		PNP	NC
		NPN	NO
		NPN	NC

Common Features :

Voltage 5-40 V DC
Max Load Current <300mA
Voltage Drop <2V DC
Leakage Current <8mA@12 V DC
Switching Freq 1000Hz
LED Indication, Reverse Polarity Protected, Over Load Protected Short Circuit Proof, Switching Impulse Suppression, PVC Cable,

M-12 Input Voltage (3 Wire)

Order Code	Range (mm)	Logic	O/P	Mounting	Frequency
	02 mm	PNP	NO	FLUSH	1000Hz
	04 mm		NO	NON FLUSH	1000Hz
	02 mm		NC	FLUSH	1000Hz
	04 mm		NC	NON FLUSH	1000Hz
	02 mm	NPN	NO	FLUSH	1000Hz
	04 mm		NO	NON FLUSH	1000Hz
	02 mm		NC	FLUSH	1000Hz
	04 mm		NC	NON FLUSH	1000Hz

Common Features :

Voltage 5-40 V DC
Max Load Current <300mA
Voltage Drop <2V DC
Leakage Current <8mA-
@12 V DC
Switching Freq 2000Hz
LED Indication, Reverse
Polarity, Protected, Over
Load Protected, Short
Circuit Proof, Switching
Impulse Suppression,
PVC Cable,

M-18 Input DC Voltage (3 Wire)

Order Code	Range (mm)	Logic	O/P	Mounting	Frequency
	05 mm	PNP	NO	FLUSH	1000Hz
	08 mm		NO	NON FLUSH	1000Hz
	05 mm		NC	FLUSH	1000Hz
	08 mm		NC	NON FLUSH	1000Hz
	05 mm	NPN	NO	FLUSH	1000Hz
	08 mm		NO	NON FLUSH	1000Hz
	05 mm		NC	FLUSH	1000Hz
	08 mm		NC	NON FLUSH	1000Hz

Common Features :

Voltage 5-40 V DC
Max Load Current <300mA
Voltage Drop <2V DC
Leakage Current <8mA-
@12 V DC
Switching Freq 2000Hz
LED Indication, Reverse
Polarity, Protected, Over
Load Protected, Short
Circuit Proof, Switching
Impulse Suppression,
PVC Cable,

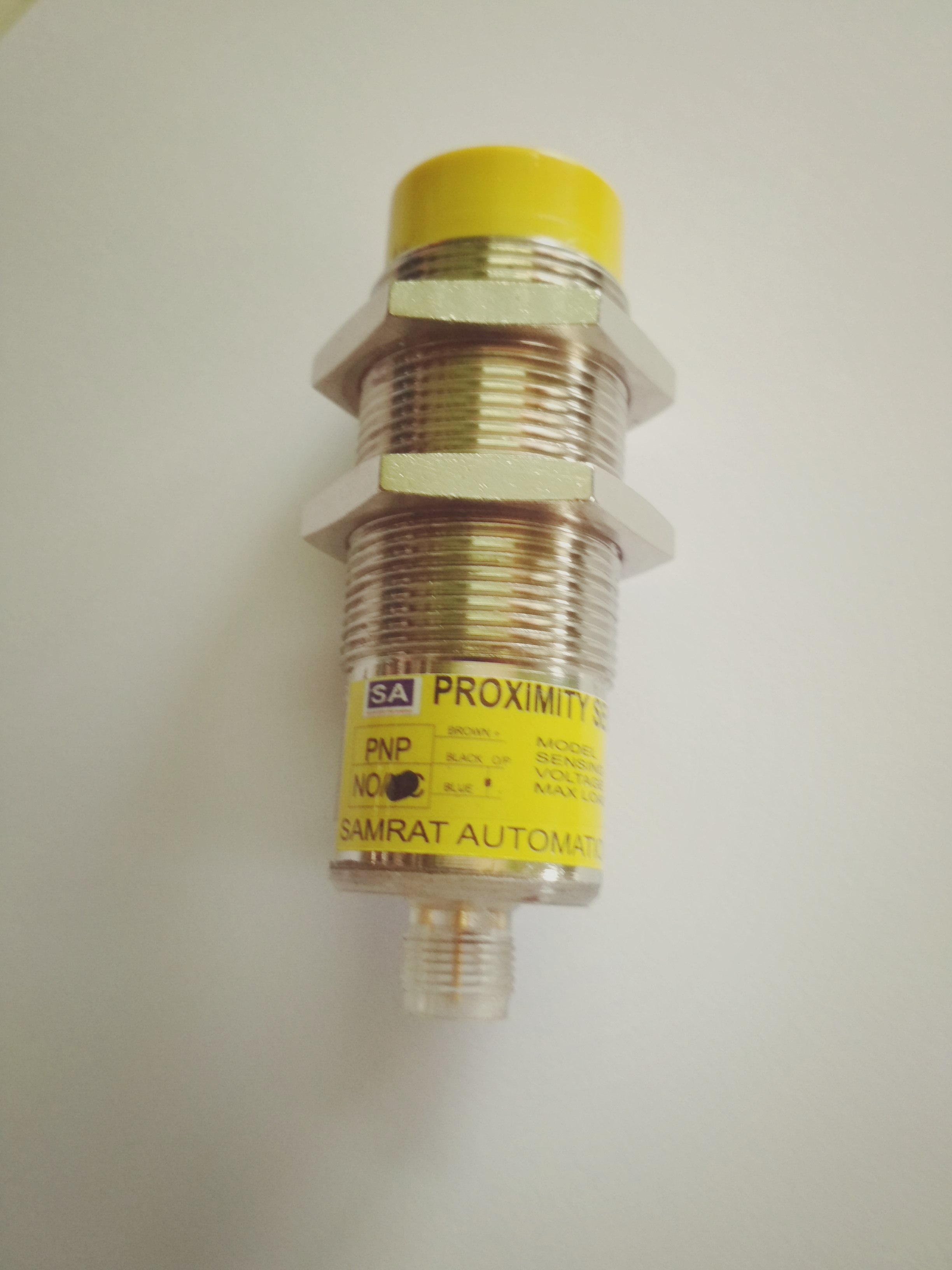

M-30 Input DC Voltage (3 Wire)

Order Code	Range (mm)	Logic	O/P	Mounting	Frequency
	10 mm	PNP	NO	FLUSH	1000Hz
	15 mm		NO	NON FLUSH	1000Hz
	10 mm		NC	FLUSH	1000Hz
	15 mm		NC	NON FLUSH	1000Hz
	10 mm	NPN	NO	FLUSH	1000Hz
	15 mm		NO	NON FLUSH	1000Hz
	10 mm		NC	FLUSH	1000Hz
	15 mm		NC	NON FLUSH	1000Hz

Common Features :

Voltage 5-40 V DC
Max Load Current <300mA
Voltage Drop <2V DC
Leakage Current <8mA-
@12 V DC
Switching Freq 2000Hz
LED Indication, Reverse Polarity, Protected, Over Load Protected, Short Circuit Proof, Switching Impulse Suppression, PVC Cable,

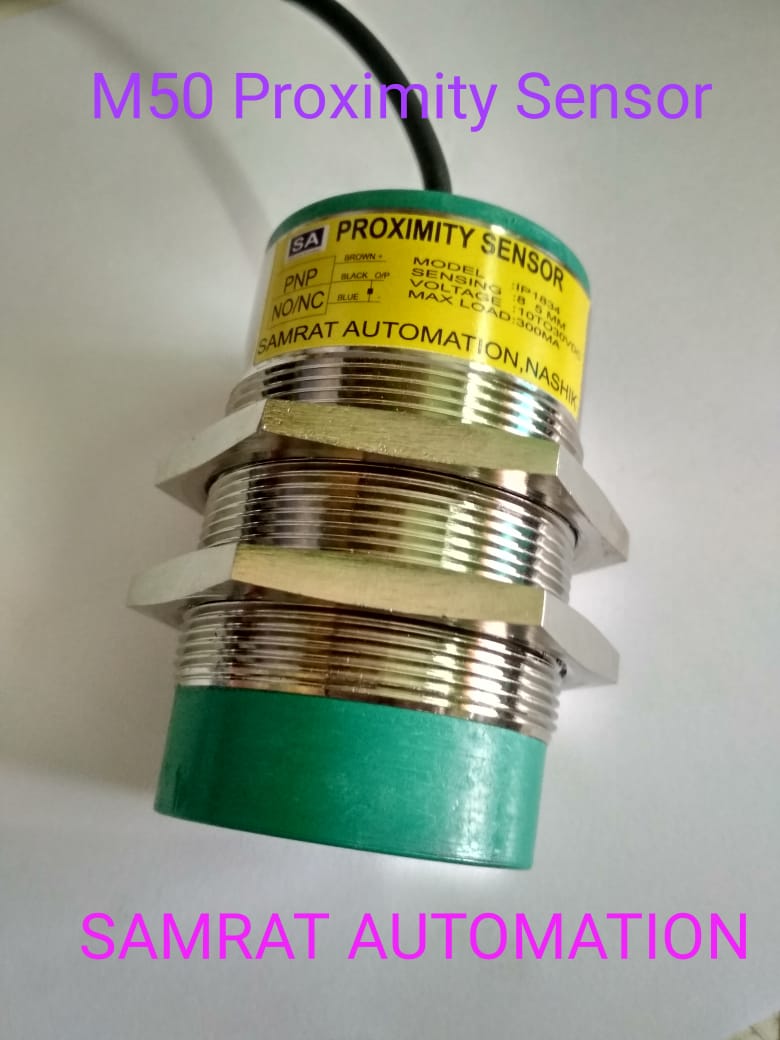

M-50 Input DC Voltage (3 Wire)

Order Code	Range (mm)	Logic	O/P	Mounting	Frequency
	25 mm	PNP	NO	NON FLUSH	1000Hz
		PNP	NC
		NPN	NO
		NPN	NC

Common Features :

Voltage 05-40 V DC
Max Load Current <300mA
Voltage Drop <2V DC
Leakage Current <8mA
LED Indication, Reverse Polarity Protected, Over Load Protected Short Circuit Proof, Switching Impulse Suppression, PVC Cable,
