Features

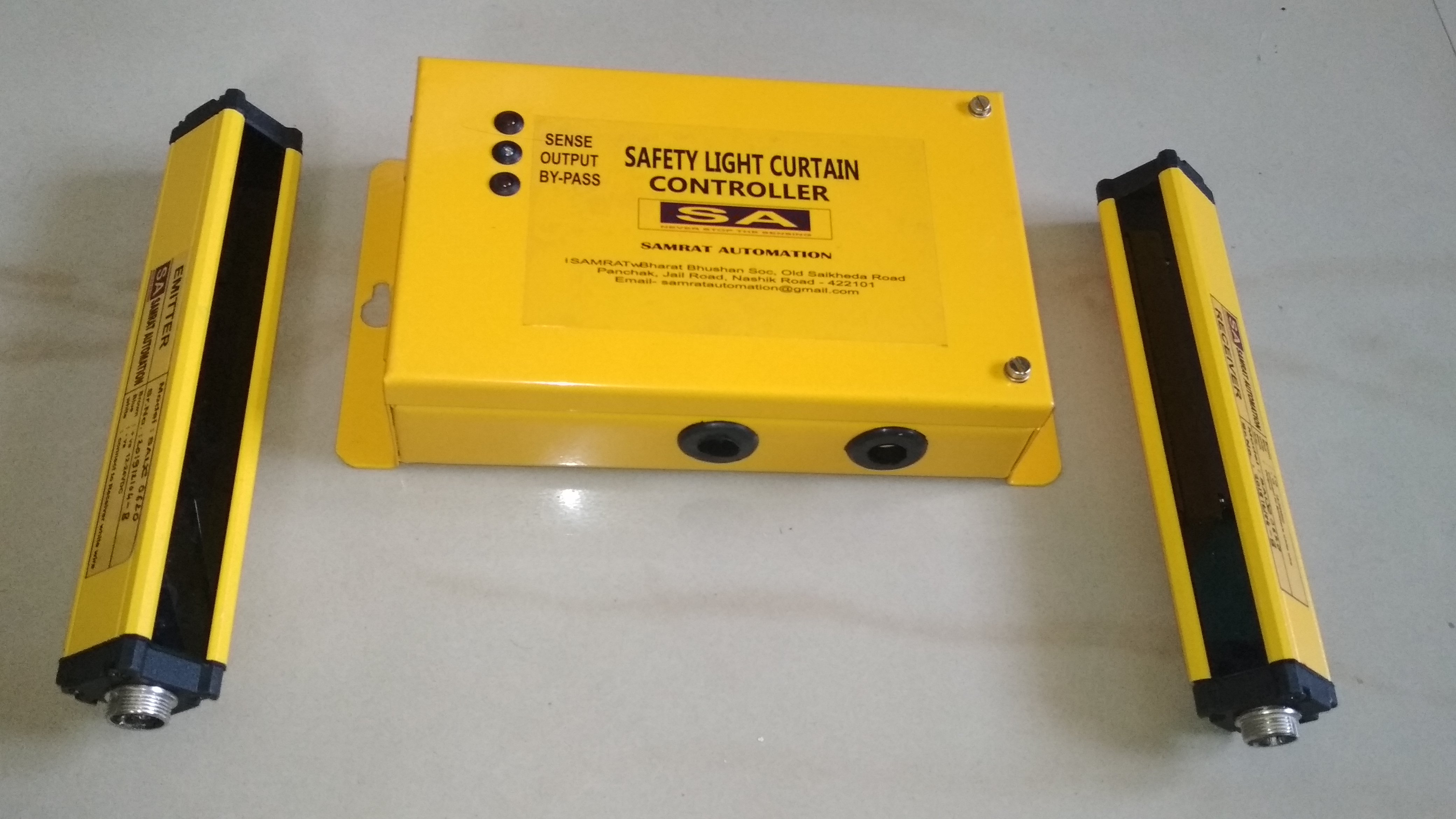

- > Offers Safety Standard Type 4 when used with Controller.
- > Easy to install and can be mounted in any position.Vertical / Horizontal.
- > Non-Critical alignment between Emitter and Receiver.
- > Blanking / By-Passing individual channel is provided through software.
- > System operation is unaffected by mains power fluctuations.
- > Machine off if screen is too dirty or oily.
- > Barrier operates on cyclic scanning photo-electric infra red techniques.
- > Various barrier heights are available for covering 90mm to 1890mm
- > Higher covering heights available upon request.
- > Use of Solid state components and special construction technique ensures that barrier ist not affected by normal vibrations and shocks.
- > Sensor Connections are provided through plugin coonectors
- > Self Checking Circuitry with two outputs continuously monitors failure of any of the beam in the system and stop the machine if failure is detected.
- > LED indications are provided for status indication of each channel.
- > LED indications are also provided for each output.

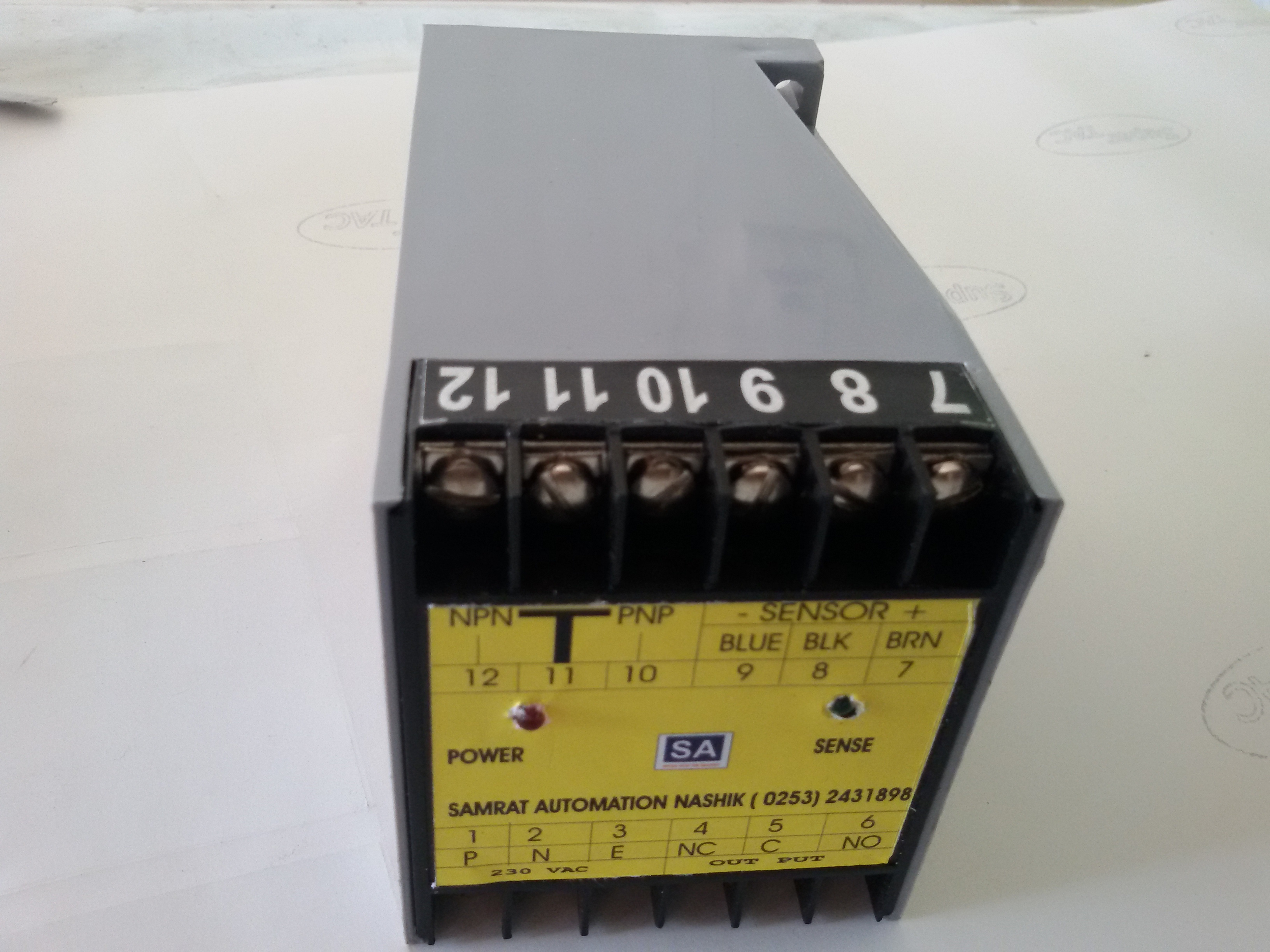

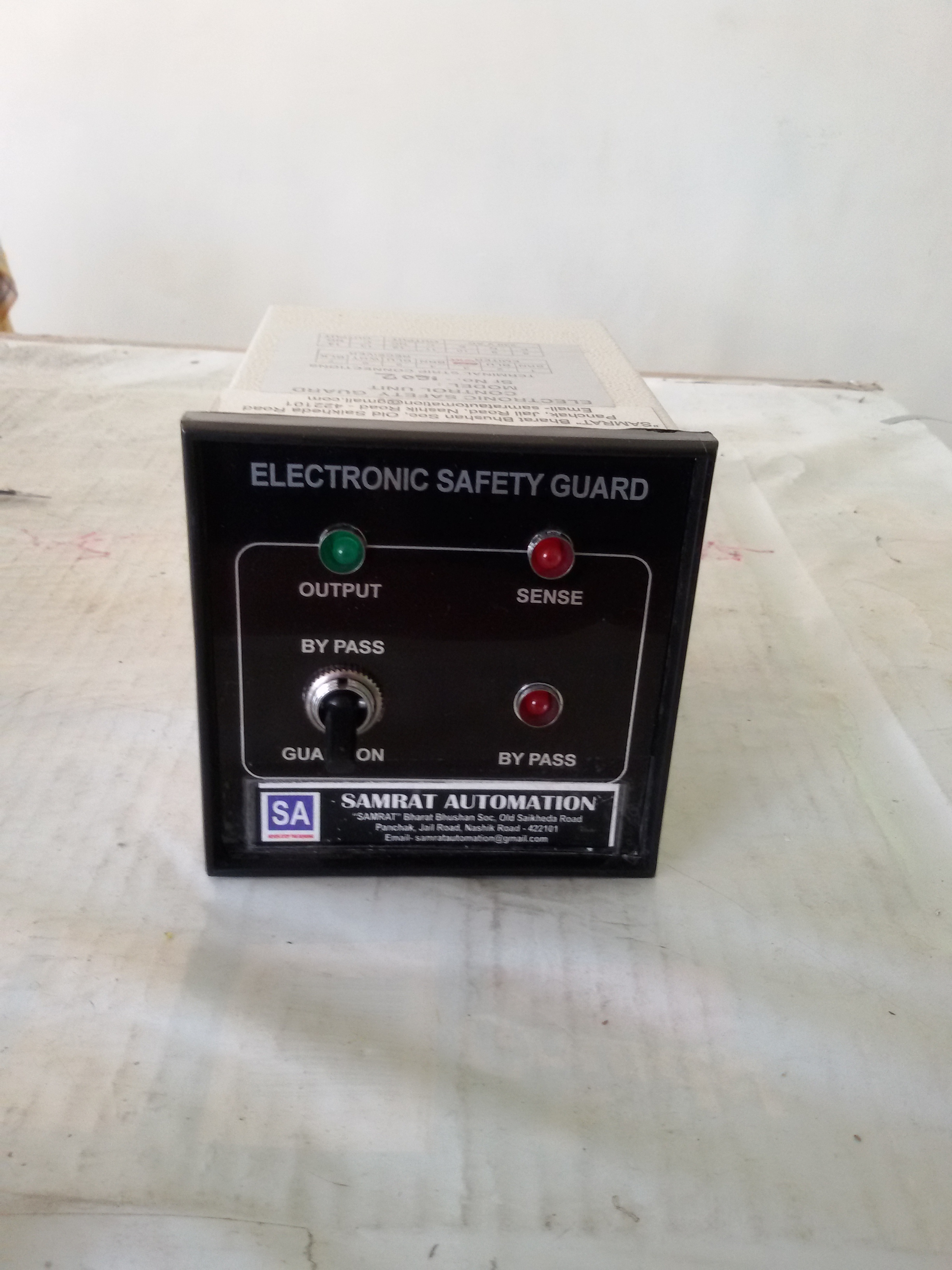

- > Choice for suitable control unit available as per different working conditions.
- > Flexible fixing arrangements to suit individual requirement.
- > Increase productivity while maintaining required safety.
Specifications
 Power Supply |
12 - 24 Volts DC |
| Supply Protection |
Reverse Polarity protected |
| Output |
Dual output : PNP or NPN / NO or AC |
| Output Indications |
Through LEDs |
| Channel Indication |
LED indication for each channel |
| Response Time |
On to Off : 10 - 15 m sec.Off to On : 50 - 100 m sec |
| Restart |
3 Automatic/td> |
| Number of beams |
6, 8 ,10, 16, 24, 32 nos. |
| Beam by Pass |
Provided in hand /body protection models |
| Protected heights |
90 - 1890 mm |
| Pitch Offered |
11 - 20 - 30 - 40 - 50 - 90mm |
| Adjustable Range |
Up to 3 meters (Higher range up to 20 meters available) |
| Electrical Connections |
Plug in connector for emitter and receiver |
| Standard cable Length |
5 meters for emitter, 3meters for receiver |
| Operating Temperature |
up to 55 degrees centigrade |
| Fastening Modes |
Slide slot on the back with adjustable height |
| Cross Section |
36 X 42 mm |
| Applicable to |
Directly work with PLCs / controllers |
| Suitable for |
Machines with quick emergency stop |
| Protections |
Output short circuit protected. |
| Vibration Resistance |
Amplitude :0.75mm (p) Freq : 10 - 55 Hzs Rate : 1 Octave / min |
| Operating ambient Light |
500 Lux (max.) when source is places opposite to receiver > 3000 lux whensource placed at an angle of 20 degrees. |
