M-12 Input AC Voltage (2 Wire)

Order Code	Range (mm)	O/P	Mounting	Frequency
	02 mm	NO	FLUSH	250Hz
	04 mm	NO	NON FLUSH
	02 mm	NC	FLUSH
	04 mm	NC	NON FLUSH
	02 mm	NO	FLUSH
	04 mm	NO	NON FLUSH
	02 mm	NC	FLUSH
	04 mm	NC	NON FLUSH

Common Features :

Voltage 20-250 V AC
Max Load Current <500mA
Voltage Drop <5V AC
Leakage Current <1.5mA
LED Indication,
Switching Impulse -
Suppression,
PVC Cable,

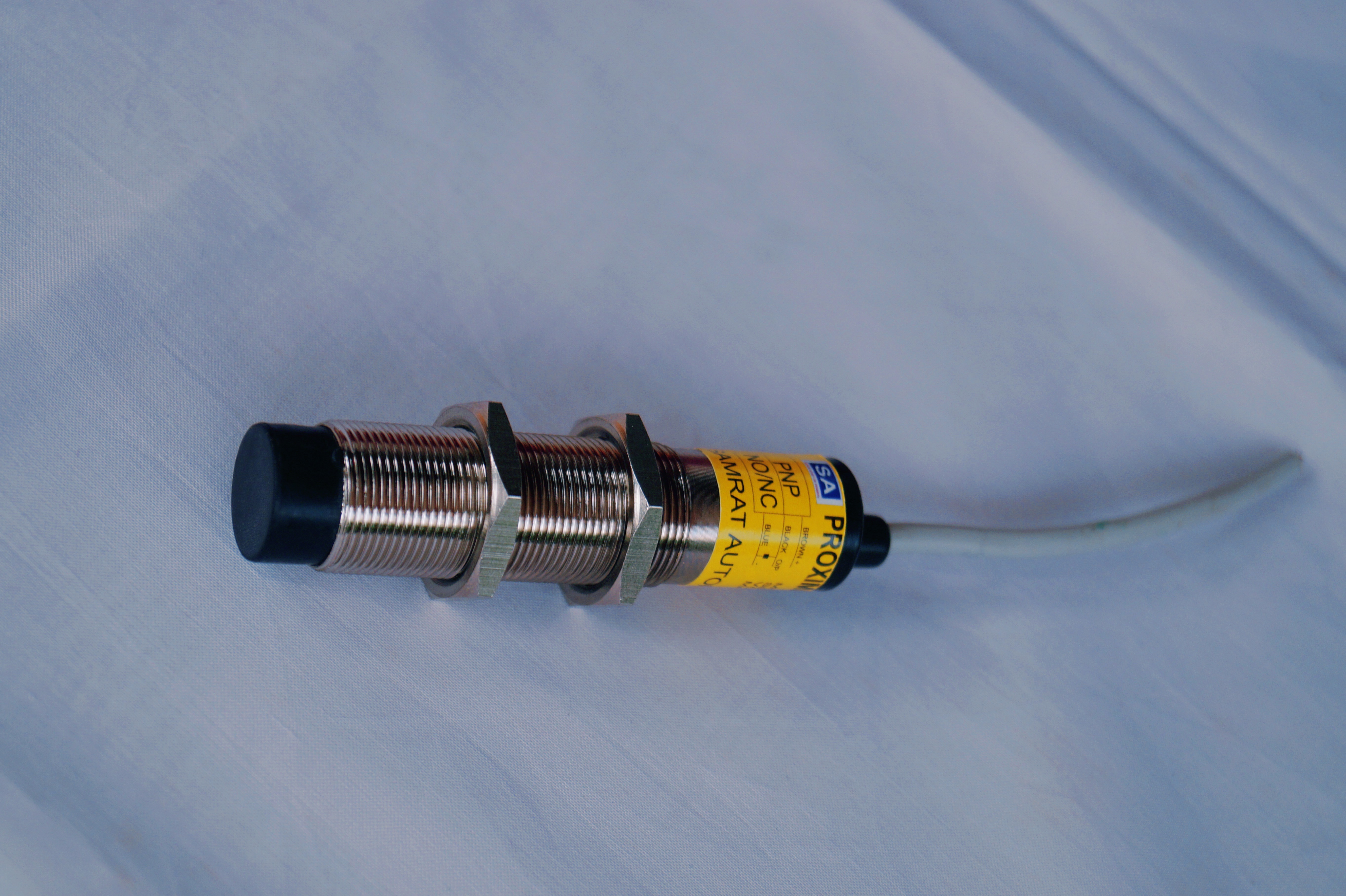

M-18 Input AC Voltage (2 Wire)

Order Code	Range (mm)	O/P	Mounting	Frequency
	05 mm	NO	FLUSH	250 Hz
	08 mm	NO	NON FLUSH
	05 mm	NC	FLUSH
	08 mm	NC	NON FLUSH

Common Features :

Voltage 20-250 V AC
Max Load Current <500mA
Voltage Drop <5V AC
Leakage Current <1.5mA
LED Indication,
Switching Impulse
Suppression,
PVC Cable,

M-30 Input AC Voltage (2 Wire)

Order Code	Range (mm)	O/P	Mounting	Frequency
	10 mm	NO	FLUSH	250Hz
	15 mm	NO	NON FLUSH	250Hz
	10 mm	NC	FLUSH	250Hz
	15 mm	NC	NON FLUSH	250Hz

Common Features :

Voltage 20-250 V AC
Max Load Current <500mA
Voltage Drop <5V AC
Leakage Current <1.5mA
LED Indication, Switching Impulse Suppression, PVC Cable,

M-50 Input AC Voltage (2 Wire)

Order Code	Range (mm)	O/P	Mounting	Frequency
	25 mm	NO	NON FLUSH	250Hz
	25 mm	NC	NON FLUSH	250Hz

Common Features :

Voltage 20-250 V AC
Max Load Current <500mA
Voltage Drop <5V AC
Leakage Current <1.5mA
LED Indication, Switching Impulse Suppression, PVC Cable,
