Magnetic Float Sensors

Magnetic Float Sensor Vertical (FS-37)

Electrical Characteristics

Contact Form	A ( Normally Open ) and B ( Normally Close )( Single Switch )
Contact Rating, Max	10W
Switching Voltage, Max	100 VDC
Switching Current, Max	0.5 Amp DC
Ideal Operational Rating	< 10VDC and < 50mAmp DC
Life expectancy-Switching Cycles,Min	0.5 X 10^6
Installation	Vertical
Wire Length	2 meters

Material

Housing	PP ( & Stainless Steel )
Float	PP Foam ( & Stainless Steel )
Potting	PU / Epoxy

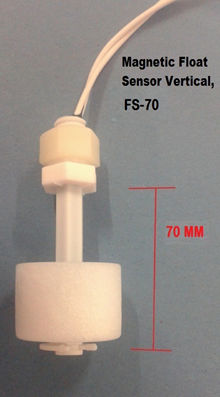

Magnetic Float Sensor Vertical (FS-70)

Electrical Characteristics

Contact Form	A ( Normally Open ) and B ( Normally Close )( Single Switch )
Contact Rating, Max	10W
Switching Voltage, Max	100 VDC
Switching Current, Max	0.5 Amp DC
Ideal Operational Rating	< 10VDC and < 50mAmp DC
Life expectancy-Switching Cycles,Min	0.5 X 10^6
Installation	Vertical
Wire Length	2 meters

Material

Housing	PP ( & Stainless Steel )
Float	PP Foam ( & Stainless Steel )
Potting	PU / Epoxy

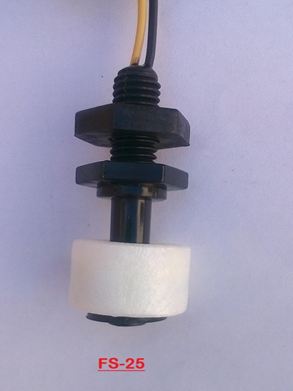

Magnetic Float Sensor Reversible (FS-25)

Electrical Characteristics

Contact Form	A ( Normally Open ) and B ( Normally Close )( Single Switch )( Reversible )
Contact Rating, Max	10W
Switching Voltage, Max	100 VDC
Switching Current, Max	0.5 Amp DC
Ideal Operational Rating	< 10VDC and < 50mAmp DC
Life expectancy-Switching Cycles,Min	0.5 X 10^6
Installation	Vertical
Wire Length	2 meters

Material

Housing	PP ( & Stainless Steel )
Float	PP Foam ( & Stainless Steel )
Potting	PU / Epoxy

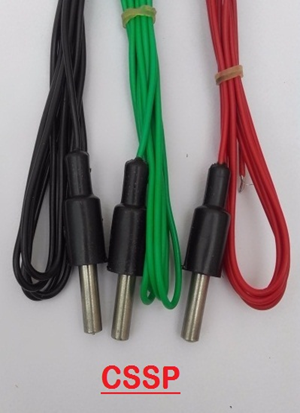

Contact Type Single Pin Sensors( CSSP )

Material

Housing	Polypropylene (Molded)
Pin	SS - 316
Wire Length	1.5 meter

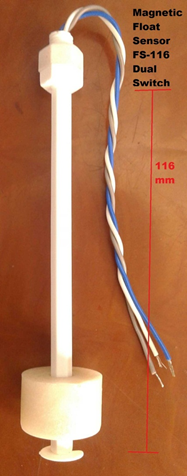

Magnetic Float Sensor Vetical (FS-116)

Electrical Characteristics

Contact Form	A ( Normally Open ) and B ( Normally Close )( Double Switch )
Contact Rating, Max	10W
Switching Voltage, Max	100 VDC
Switching Current, Max	0.5 Amp DC
Ideal Operational Rating	< 10VDC and < 50mAmp DC
Life expectancy-Switching Cycles,Min	0.5 X 10^6
Installation	Vertical
Wire Length	0.20 meters

Material

Housing	PP ( & Stainless Steel )
Float	PP Foam ( & Stainless Steel )
Potting	PU / Epoxy

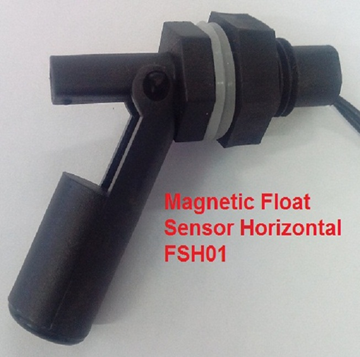

Magnetic Float Sensor Vetical ( FSH01 )

Electrical Characteristics

Contact Form	A ( Normally Open ) and B ( Normally Close )( Single Switch )
Contact Rating, Max	10W
Switching Voltage, Max	100 VDC
Switching Current, Max	0.5 Amp DC
Ideal Operational Rating	< 10VDC and < 50mAmp DC
Life expectancy-Switching Cycles,Min	0.5 X 10^6
Installation	Horizontal
Wire Length	1 meters

Material

Housing	PP ( & Stainless Steel )
Float	PP Foam ( & Stainless Steel )
Potting	PU / Epoxy

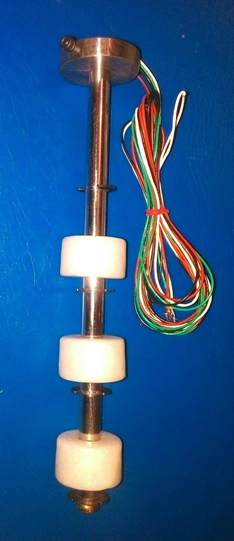

Magnetic Float Sensor Vetical, Multistage ( S.S. )

Electrical Characteristics

Contact Form	A ( Normally Open ) and B ( Normally Close )( Single Switch ) (Reversible)
Contact Rating, Max	10W
Switching Voltage, Max	100 VDC
Switching Current, Max	0.5 Amp DC
Ideal Operational Rating	< 10VDC and < 50mAmp DC
Life expectancy-Switching Cycles,Min	0.5 X 10^6
Installation	Vertical
Wire Length	1 meters ( Teflon Wire )

Material

Housing	Nylon Glass Field
Potting	PU / Epoxy

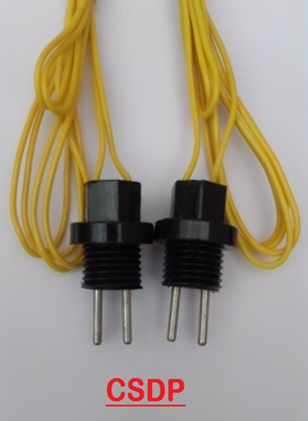

Contact Type Double Pin Sensors(Inline Flow Sensor) (CSDP)

Material

Housing	Polypropylene( Molded )
Pin	SS-316
Thread	1/2" BSP
Wire Length	1 meter

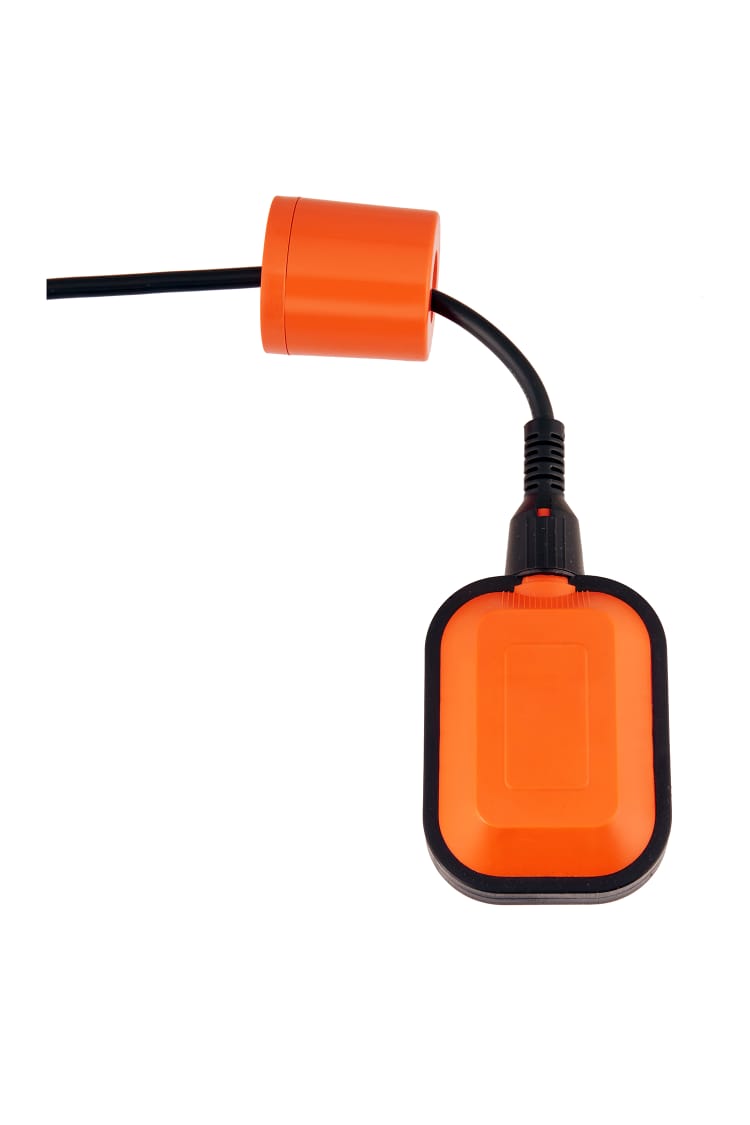

Cable Float Switch ( CFS )

Electrical Characteristics

Contact Form	NO and NC
Switching Current	CFS-05 1 Amp DC or 5 Amp AC CFS-16 5 Amp DC or 16 Amp AC
Protection	IP- 68
Switching Life	10000 Cycles
Wire Length	2, 3, 5, 10 mtr

Material

Housing	PolyPropylene
Sealing	Moulding
