Products

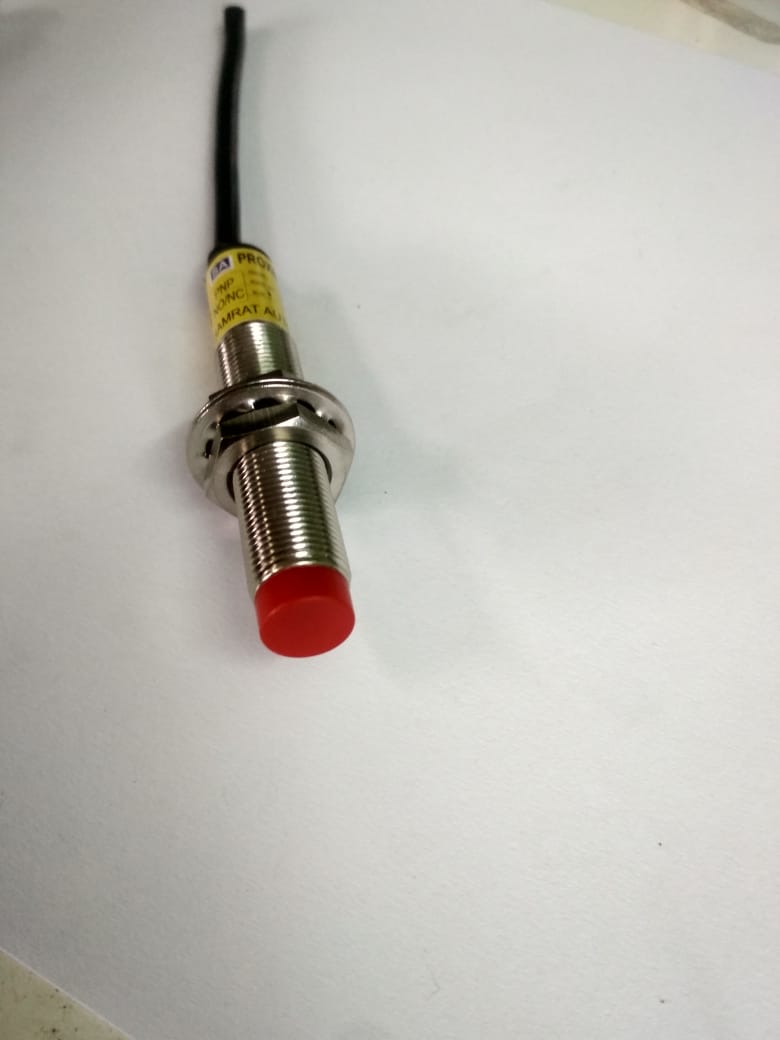

M-12 (Input DC Voltage DC 2 Wire)

Order Code	Range (mm)	O/P	Mounting	Frequency
	05 mm	NO	FLUSH	250Hz
	08 mm	NO	NON FLUSH
	05 mm	NC	FLUSH
	08 mm	NC	NON FLUSH

M-18 (Input DC Voltage DC 2 Wire)

Order Code	Range (mm)	O/P	Mounting	Frequency
	05 mm	NO	FLUSH	250Hz
	08 mm	NO	NON FLUSH
	05 mm	NC	FLUSH
	08 mm	NC	NON FLUSH

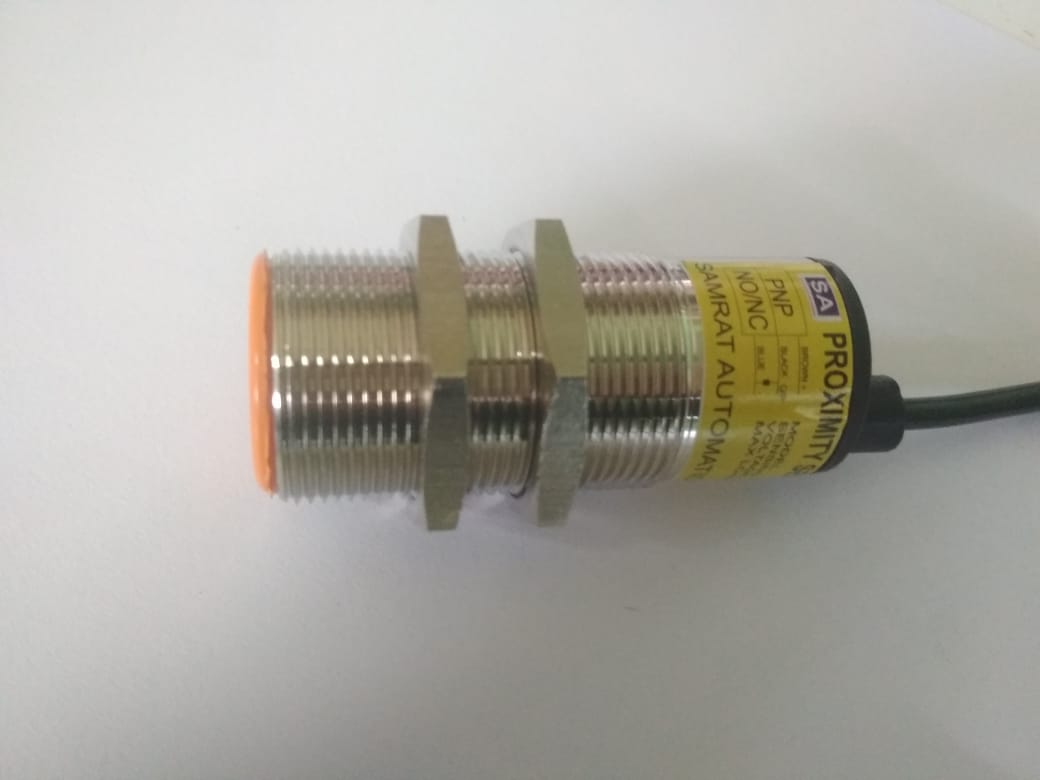

M-30 Input DC Voltage (2 Wire)

Order Code	Range (mm)	Logic	O/P	Mounting	Frequency
	10 mm	PNP	NO	FLUSH	250Hz
	15 mm		NO	NON FLUSH	250Hz
	10 mm		NC	FLUSH	250Hz
	15 mm		NC	NON FLUSH	250Hz
	10 mm	NPN	NO	FLUSH	250Hz
	15 mm		NO	NON FLUSH	250Hz
	10 mm		NC	FLUSH	250Hz
	15 mm		NC	NON FLUSH	250Hz

Common Features :

Voltage 10-35 V DC
Max Load Current <300mA
Voltage Drop <2V DC
Leakage Current <8mA-
@12 V DC
Switching Freq 200Hz
LED Indication, Reverse Polarity, Protected, Over Load Protected, Short Circuit Proof, Switching Impulse Suppression, PVC Cable,

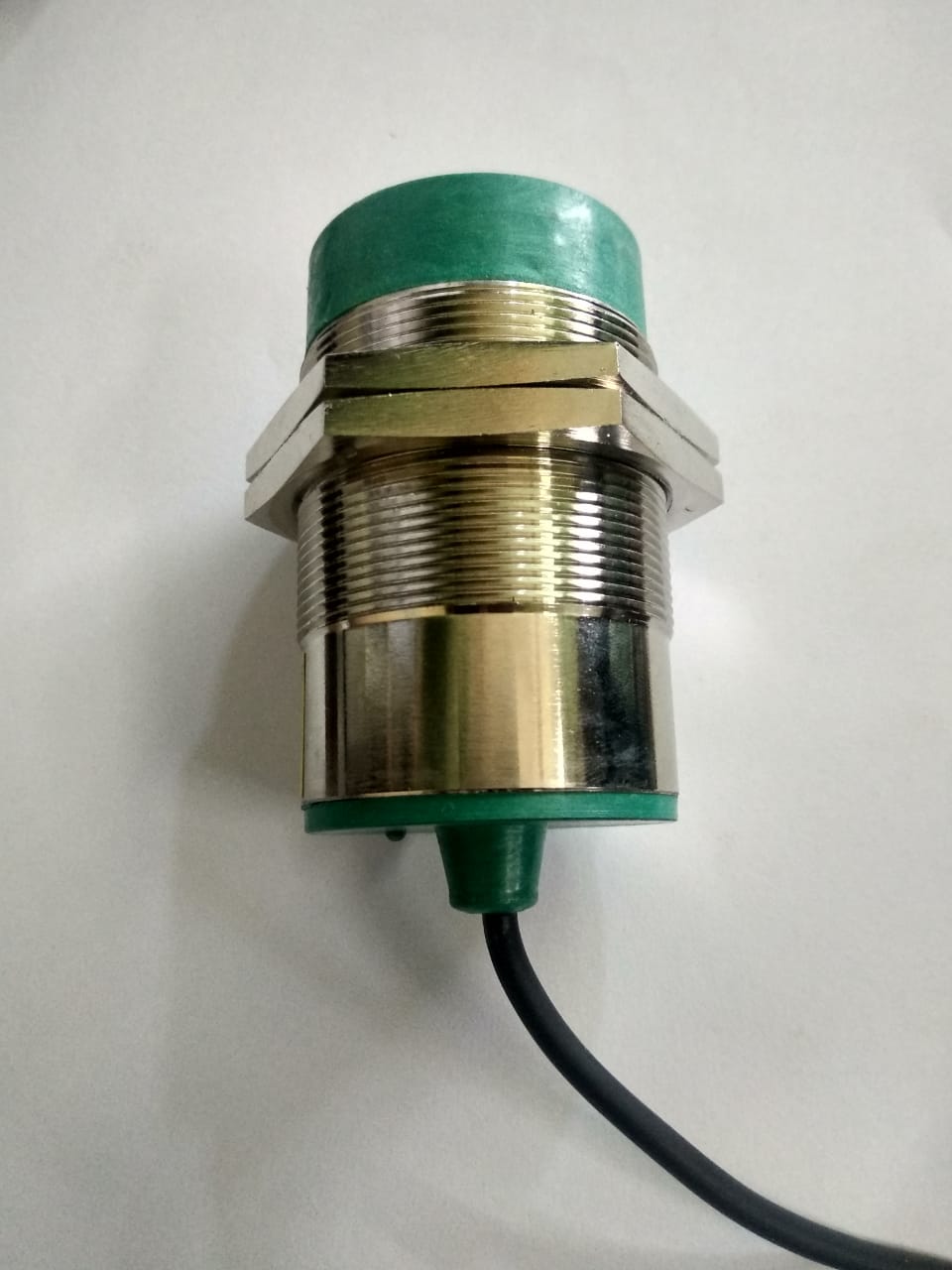

M-50 Input DC Voltage (2 Wire)

Order Code	Range (mm)	O/P	Mounting	Frequency
	25 mm	NO	NON FLUSH	250Hz
	25 mm	NC	NON FLUSH	250Hz

Common Features :

Voltage 20-250 V AC
Max Load Current <500mA
Voltage Drop <5V AC
Leakage Current <1.5mA
LED Indication, Switching Impulse Suppression, PVC Cable,
